Kiosk Processor and 4K Media Player - IAdea

High-Performance Kiosk Processor and 4K Media Player

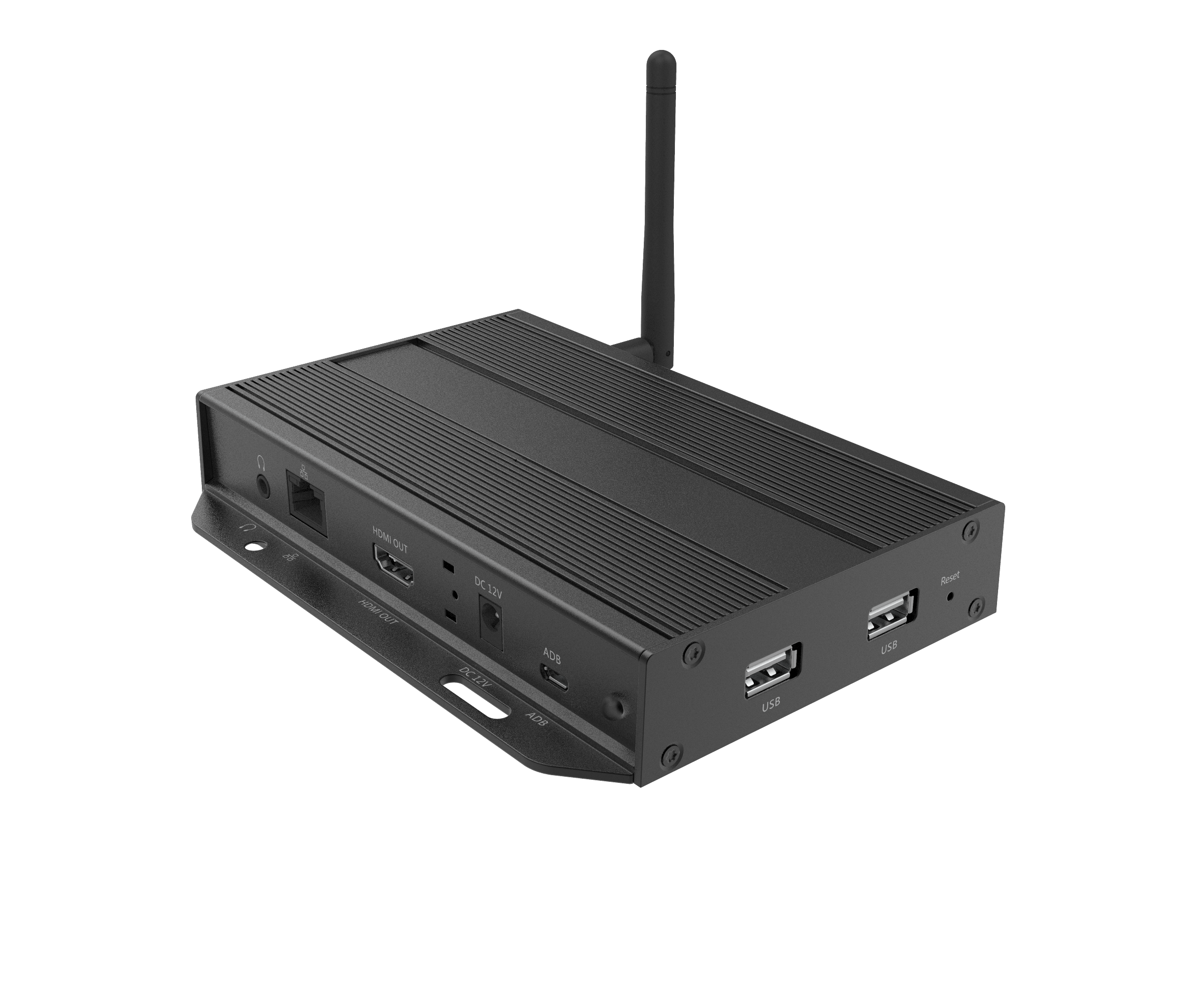

XMP-7500
Android 7.1 Kiosk Processor and 4K Media Player

XMP-8552

XMP-8550/8552
Android 12.0 Kiosk Processor and 4K Media Player



XMP-7500

XMP-8550

XMP-8552

Local Storage

16 GB eMMC built-in
Micro SD card (replaces internal storage)

16 GB eMMC built-in
Micro SD card (replaces internal storage)

16 GB eMMC built-in
Micro SD card (replaces internal storage)

Andriod API 7.1 API 12.0API 12.0

Supported Video Formats

H.265/HEVC up to 4K (3840 x 2160)
H.264/AVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)

H.265/HEVC up to 4K (3840 x 2160)
H.264/AVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)

H.265/HEVC up to 4K (3840 x 2160)
H.264/AVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)

ConnectivityIEEE 802.11 b/g/n dual-band Wi-FiIEEE 802.3ab Gigabit Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.11 a/b/g/n/ac dual-band Wi-Fi
IEEE 802.3af PoE
PortsGigabit Ethernet
HDMI 2.0 (3840 x 2160 @ 60fps)
Micro USB for ADB
USB 2.0 x 2
3.5 mm analog stereo audio out
S/PDIF out
Optional 3G / 4G mobile module via USB
Gigabit Ethernet port x 1
HDMI 2.0 (3840 x 2160 @ 60fps) x 1
Micro USB x 1
USB 2.0 x 1
USB 3.0 x 1
3.5 mm analog stereo audio out x 1
Gigabit Ethernet port x 1
HDMI 2.0 (3840 x 2160 @ 60fps) x 1
Micro USB x 1
USB 2.0 x 1
USB 3.0 x 1
3.5 mm analog stereo audio out x 1
External antenna port x 1
AccessoriesHDMI cable
External 2 dB wireless antenna
Velcro
Power / Micro SD card bracket
HDMI cable
Velcro
DC jack bracket
Micro SD card bracket
M2.5 screw x 2
Quick Start Guide
AC power adapter with interchangeable plug head (US/EU/UK/AUS)
SignApps Express QR code

HDMI cable
External 2 dB wireless antenna
Velcro
DC jack bracket
Micro SD card bracket
M2.5 screw x 2
Quick Start Guide
AC power adapter with interchangeable plug head (US/EU/UK/AUS)
SignApps Express QR code
Supported Open StandardsHTML5, JavaScript, and CSS
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery Android
7.1 API
HTML5, JavaScript, and CSS
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery Android
API 12.0
HTML5, JavaScript, and CSS
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery Android
API 12.0
PowerInput: 100 - 240 V, 50 - 60 Hz, 0.5 A Max.
Output: 12 V, 1.5 A
UL/CB/PSE certified power supplies
Interchangeable connector system includes US plugs (optional for EU, UK, and AUS plugs)
Input: 100 - 240V, 50 - 60 Hz, 0.5 A Max.
Output: 12V, 1.5 A
UL/CB/PSE certified power supply
Input: 100 - 240V, 50 - 60 Hz, 0.5 A Max.
Output: 12V, 1.5 A
UL/CB/PSE certified power supply
Supported Image FormatsJPEG up to 1920 x 1080
PNG up to 1920 x 1080
JPEG up to 1920 x 1080
PNG up to 1920 x 1080
JPEG up to 1920 x 1080
PNG up to 1920 x 1080
Expansion OptionsMemory expandable to 16 GB / 32 GB with Micro SD / SDHC cardMemory expandable to 16 GB / 32 GB with Micro SD / SDHC cardMemory expandable to 16 GB / 32 GB with Micro SD / SDHC card
Supported Audio FormatsMP3 up to 320 KbpsMP3 up to 320 KbpsMP3 up to 320 Kbps
Environmental ToleranceOperating temperature: -20 to 50 °C
Humidity: 10 to 85 % @ 45 °C, non-condensing
Shock: IEC 60068-2-27 Table A.1 (railway)
Vibration: 1.5 G @ 5 - 200Hz, random
Operating temperature: -20 to 50 °C
Humidity: 10 to 85 % @ 45 °C, non-condensing
Shock: IEC 60068-2-27 Table A.1 (railway)
Vibration: 1.5 G @ 5 - 200Hz, random
Operating temperature: -20 to 50 °C
Humidity: 10 to 85 % @ 45 °C, non-condensing
Shock: IEC 60068-2-27 Table A.1 (railway)
Vibration: 1.5 G @ 5 - 200Hz, random
Advanced Signage FeaturesRemote commissioning
AlwaysOn, AppLockto prevent unauthorized access
StrongCache for continued playback even when network is not available
Remote commissioning
AlwaysOn, AppLockto prevent unauthorized access
StrongCache for continued playback even when network is not available
Remote commissioning
AlwaysOn, AppLockto prevent unauthorized access
StrongCache for continued playback even when network is not available
Content ManagementSignApps Express Utility
3rd party solution (optional license)
SignApps Express Utility
3rd party solution (optional license)
SignApps Express Utility
3rd party solution (optional license)
HTML5 SupportWidgets for calendar, clock, news, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers
Widgets for calendar, clock, news, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers
Widgets for calendar, clock, news, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers
IAdea is a recognized pioneer in the global digital signage market since 2000. It creates innovative, commercial-grade digital signage media players and integrated displays. By focusing on partnership, IAdea created one of the industry’s largest ecosystems around open standards across a wide variety of business markets. It aims to provide exceptional customer service through its worldwide locations.
