High-Performance Kiosk Processor and 4K Media Player

XMP-8552 / XMP-8550

Featuring a consistently powerful quad-core processor that packs in high performance, excellent energy savings, and diligent watchdog monitoring. Whether the player is powering an interactive wayfinding kiosk or a gesture-sensitive retail kiosk, content is always displayed in the best possible light, day in, day out.

4K technology for an unforgettable user experience.

No limits. No compromise on performance.

XMP-8552
XMP-8552

4K technology for an unforgettable user experience.

No limits. No compromise on performance.

Android 12

Android 12

The latest Android OS for greater security and performance enhancements

PoE Ready

Power and connectivity over a single wire for less cable clutter (XMP-8552)

Wi-Fi Connectivity

Dual-band Wi-Fi support to easily push content wirelessly (XMP-8552)

Touch Support

Supports touch for interactive wayfinding and self-service kiosks

Watchdog Timer

Round-the-clock device monitoring maintains device stability and operation

Rugged Design

Durable against tough environments and wide temperature ranges

Exceptional Performance Meets Unrivalled Quality

The XMP-8552 has a consistently powerful quad-core processor, packing in the best performance, excellent energy-saving, and diligent watchdog monitoring. Whether powering an entrance-side interactive wayfinding kiosk or gesture-sensitive retail kiosk, your content is always in the best condition, day in, day out.

A Spectacular Visual and

Interactive Experience

Unforgettable experiences bring back shoppers and visitors. The XMP-8552 is the perfect processor for simplifying deployment of customized and remotely manageable kiosks. Retailers and merchandisers can integrate it with smart technology such sensors, cameras, buttons, and readers to deliver a unique user and brand experience.

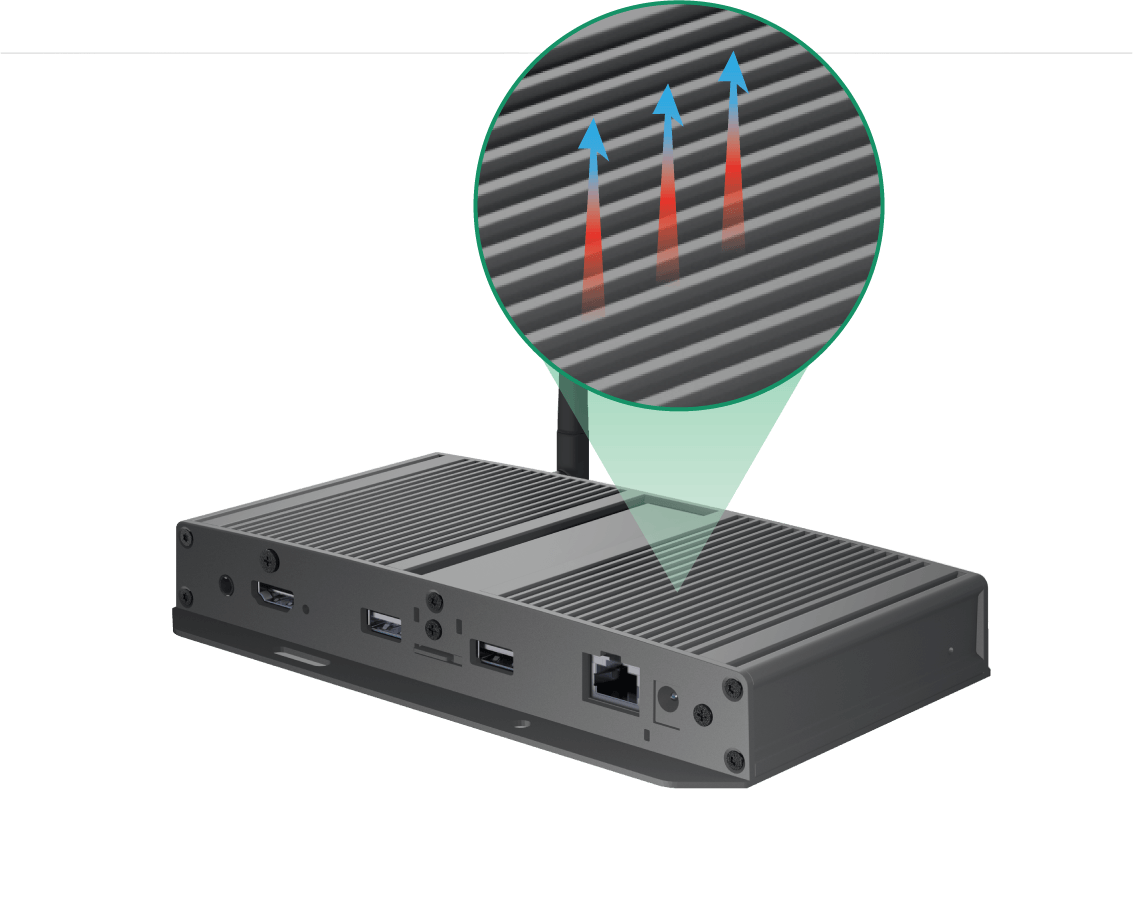

Robust Durability and Rapid Cooling

Kiosk players with plastic housing are vulnerable to overheating and breaking upon contact with hard surfaces. The XMP-8552’s aluminium housing however ensures rapid cooling and protection against blunt force to maintain uninterrupted operation in all kinds of demanding environments.

XMP-7500 Self-cooling

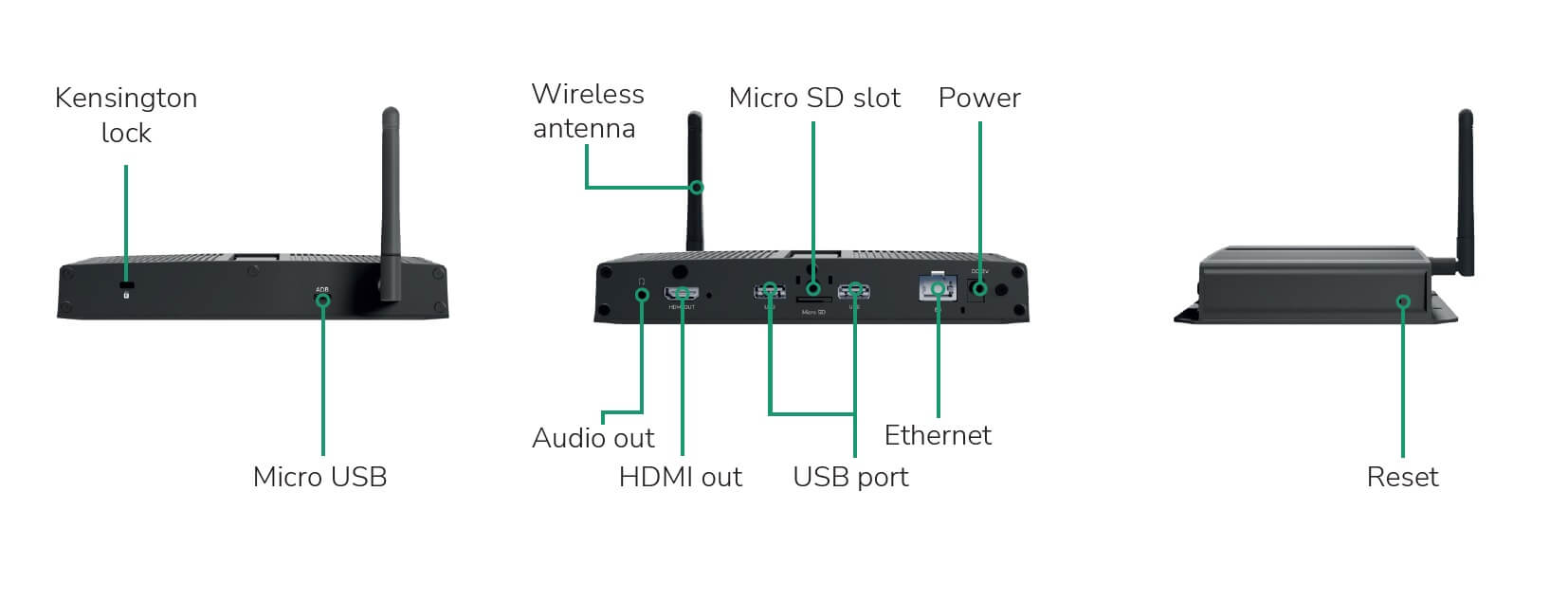

I/O Ports

XMP-7500 I/O Ports

Technical Specifications



XMP-8550

XMP-8552

Local Storage

16 GB eMMC built-in
Micro SD card (replaces internal storage)

16 GB eMMC built-in
Micro SD card (replaces internal storage)

Dimensions 166 x 27 x 125.5mm / 6.5 x 1.1 x 4.9"166 x 27 x 125.5mm / 6.5 x 1.1 x 4.9"

Supported Video Formats

H.265/HEVC up to 4K (3840 x 2160)
H.264/AVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)

H.265/HEVC up to 4K (3840 x 2160)
H.264/AVC up to 1080p (1920 x 1080)
MPEG-4 up to 1080p (1920 x 1080)
MPEG-2 up to 1080p (1920 x 1080)
MPEG-1 up to 1080p (1920 x 1080)
VC-1 up to 1080p (1920 x 1080)

ConnectivityIEEE 802.3ab Gigabit Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3 a/b/g/n/ac dual-band Wi-Fi
IEEE 802.3af PoE
PortsGigabit Ethernet port x 1
HDMI 2.0 (3840 x 2160 @ 60fps) x 1
Micro USB x 1
USB 2.0 x 1
USB 3.0 x 1
3.5 mm analog stereo audio out x 1
Gigabit Ethernet port x 1
HDMI 2.0 (3840 x 2160 @ 60fps) x 1
Micro USB x 1
USB 2.0 x 1
USB 3.0 x 1
3.5 mm analog stereo audio out x 1
External antenna port x 1
AccessoriesHDMI cable
Velcro
DC jack bracket
Micro SD card bracket
M2.5 screw x 2
Quick Start Guide
AC power adapter with interchangeable plug head (US/EU/UK/AUS)
SignApps Express QR code

HDMI cable
External 2 dB wireless antenna
Velcro
DC jack bracket
Micro SD card bracket
M2.5 screw x 2
Quick Start Guide
AC power adapter with interchangeable plug head (US/EU/UK/AUS)
SignApps Express QR code
Supported Open StandardsHTML5, JavaScript, and CSS
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery Android
API 12.0
HTML5, JavaScript, and CSS
W3C SMIL for cross-platform management
W3C Widgets for HTML delivery Android
API 12.0
PowerInput: 100 - 240V, 50 - 60 Hz, 0.5 A Max.
Output: 12V, 1.5 A
UL/CB/PSE certified power supply
Input: 100 - 240V, 50 - 60 Hz, 0.5 A Max.
Output: 12V, 1.5 A
UL/CB/PSE certified power supply
Supported Image FormatsJPEG up to 1920 x 1080
PNG up to 1920 x 1080
JPEG up to 1920 x 1080
PNG up to 1920 x 1080
Expansion OptionsMemory expandable to 16 GB / 32 GB with Micro SD / SDHC cardMemory expandable to 16 GB / 32 GB with Micro SD / SDHC card
Supported Audio FormatsMP3 up to 320 KbpsMP3 up to 320 Kbps
Environmental ToleranceOperating temperature: -20 to 50 °C
Humidity: 10 to 85 % @ 45 °C, non-condensing
Shock: IEC 60068-2-27 Table A.1 (railway)
Vibration: 1.5 G @ 5 - 200Hz, random
Operating temperature: -20 to 50 °C
Humidity: 10 to 85 % @ 45 °C, non-condensing
Shock: IEC 60068-2-27 Table A.1 (railway)
Vibration: 1.5 G @ 5 - 200Hz, random
Advanced Signage FeaturesRemote commissioning
AlwaysOn, AppLockto prevent unauthorized access
StrongCache for continued playback even when network is not available
Remote commissioning
AlwaysOn, AppLockto prevent unauthorized access
StrongCache for continued playback even when network is not available
Content ManagementSignApps Express Utility
3rd party solution (optional license)
SignApps Express Utility
3rd party solution (optional license)
HTML5 SupportWidgets for calendar, clock, news, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers
Widgets for calendar, clock, news, and web page integration
HTML5 technologies including CSS and Javascript
WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers

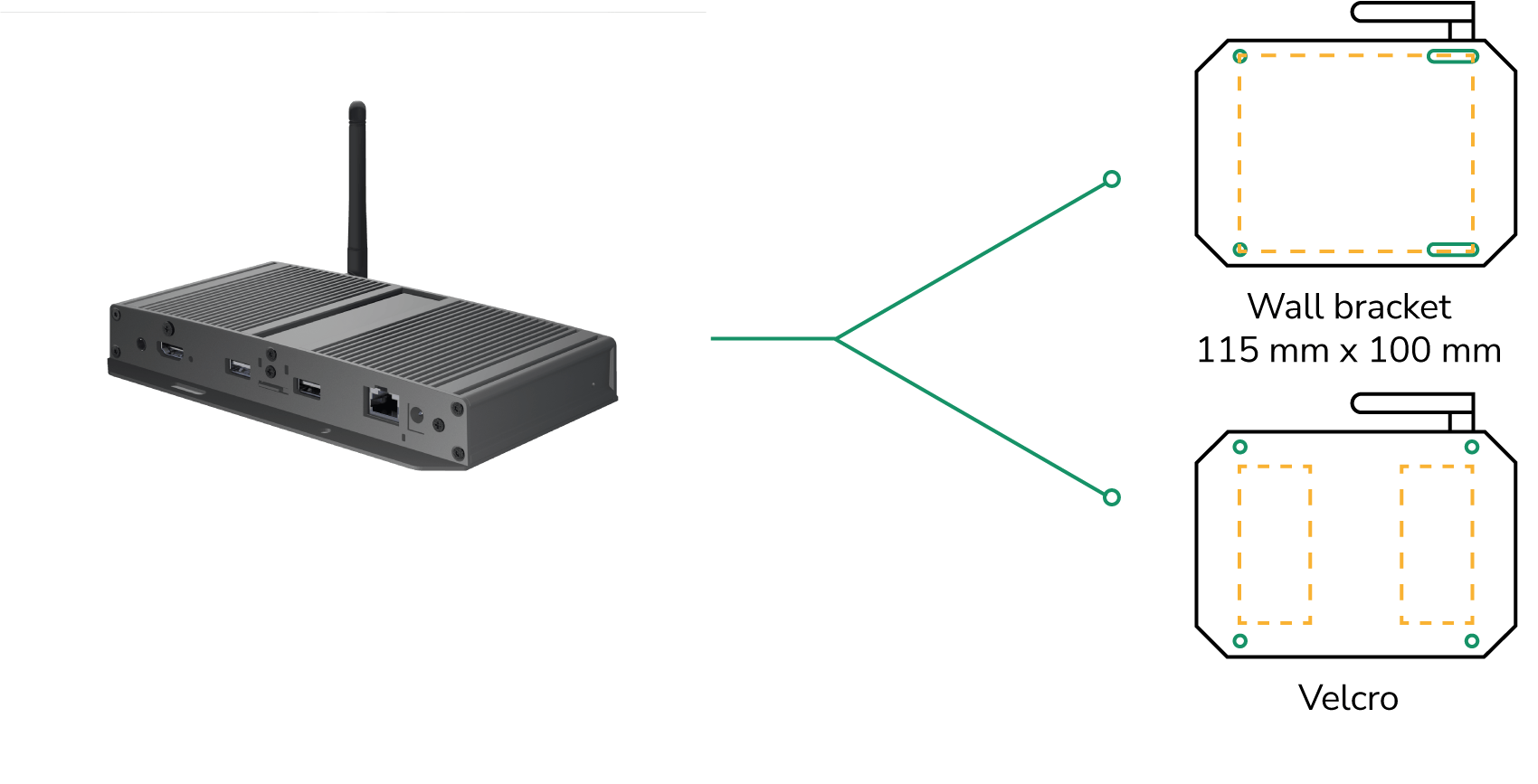

Mounting Options

XMP-8552 Mounting Options
