Workplace

e-Paper Panel

WBP-130 / WBP-160

The E-Paper Panel Series enables digitally transformed modern workplaces that are built for hybrid workforces and need enhanced flexibility. Team members can book a desk in advance through our selected software partners’ workplace apps or on the spot with the press of a button. The crisp tricolor display shows desk immediate availability,
with no need to queue at the front desk or run around searching for
a free desk.

Designed for Smart Working Environments

that Inspire Productivity

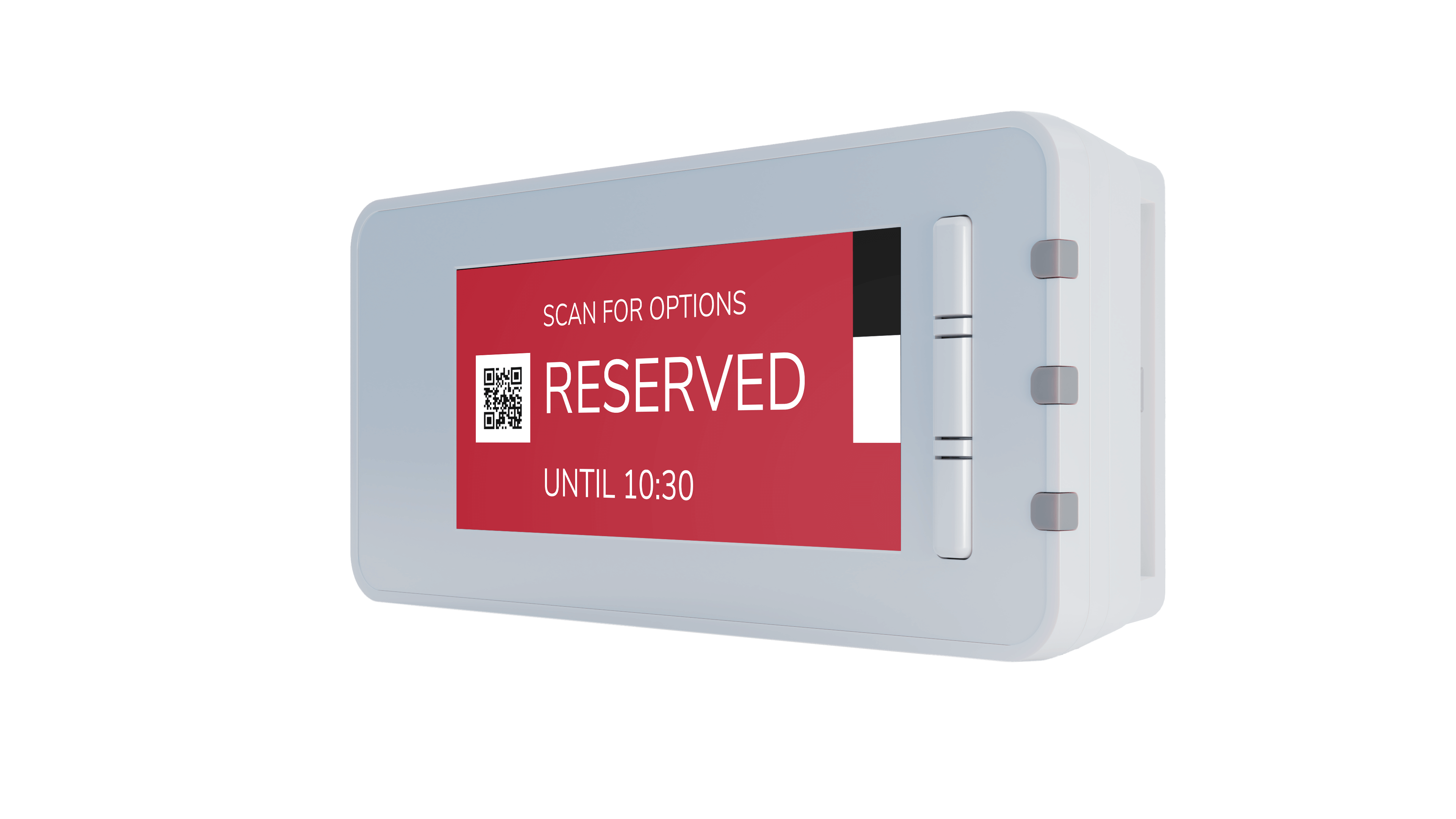

The future of the modern workplace is characterized by flexibility, openness, and automation. The IAdea e-paper desk panel supports this trend by allowing easy desk reservations through third-party software or scanning an on-screen QR code via an app. When ready to leave, press the button to check out and release the desk. The WBP-130 features a high-clarity tricolor display with anti-glare technology, making it easily readable under various lighting conditions without needing power. Its low energy consumption and long battery life of over three years also help organizations achieve sustainability goals. The sleek e-paper panel can be easily mounted on desktops, sides of desks, or partitions and comes with anti-theft features to aid in space management.

Cable-free installation on any desk

Crisp tricolor anti-glare bistable display

QR code-based booking integration

Ultra-long battery life and minimal carbon footprint

Optional one-touch check-in button

Diverse secure mounting options

Batteries that keep going and going and going…

The WBP-130 is an advocate for sustainability, equipped with an e-paper display that uses a mere fraction of the energy compared to a typical LCD display. It also features an efficient onboard battery that can last up to or even beyond 3 years*. No need to run around recharging or changing batteries at the end of each workweek.

*Based on 8 screen changes a day

Totally wireless functionality

The WBP-130 pairs Wi-Fi connectivity with an onboard battery to offer a totally cable-free design. No need to run expensive cabling to each desk, simply ensure the device is within range of a certified router for seamless connections between reservation systems and devices.

Workplace E-paper Panel Family

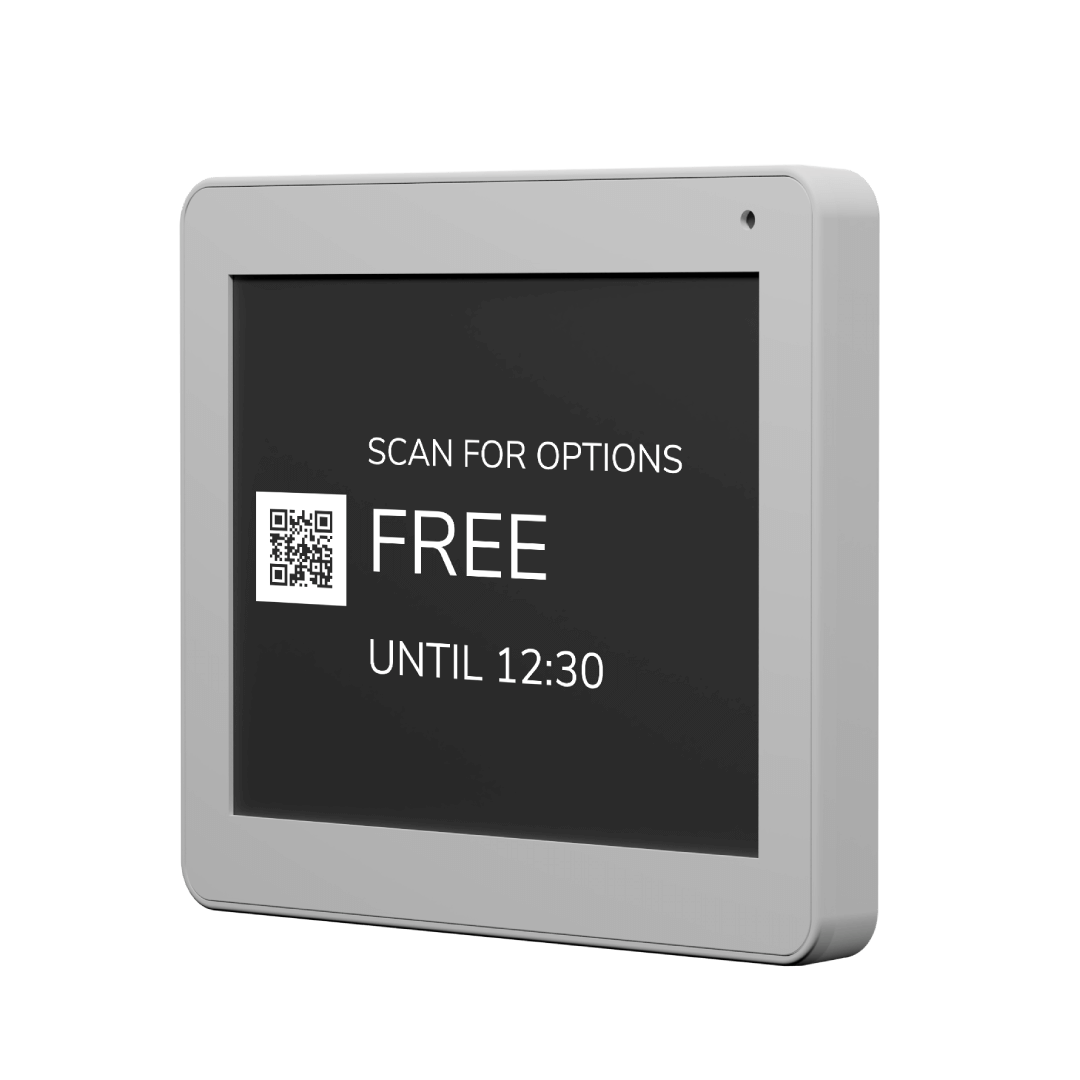

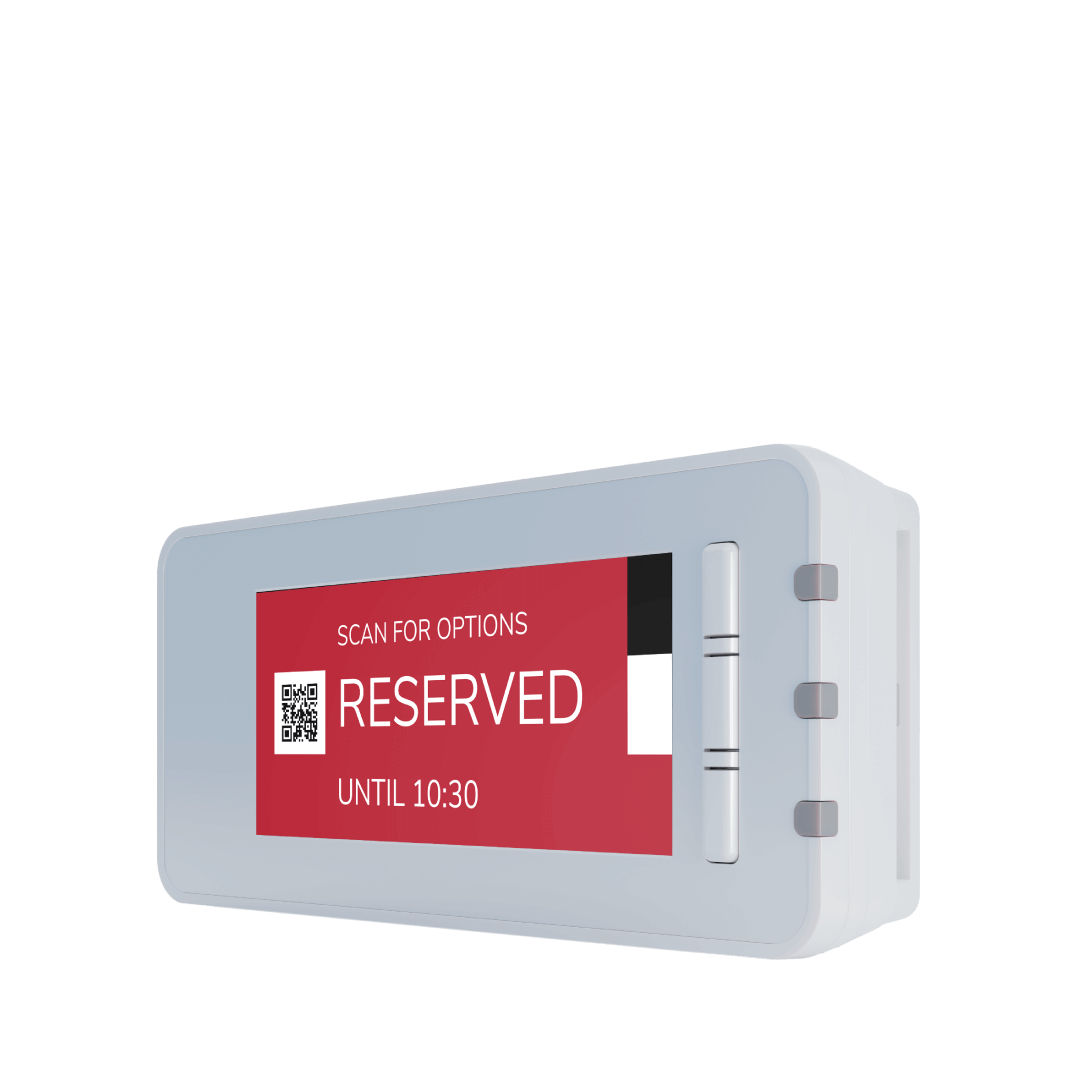

Model name	WBP-130	WDB-160

Screen Dimensions	67 x 29.7 mm	115 x 86.5 mm
Resolution	296 x 128 pixels	600 x 448 pixels
Color	Red/Black/White	Red/Black/White
Interactive	Three programmable buttons	One programmable button
Battery	CR2450 x 4 (2480mAh) Lasts 10,000 updates (3+ years if updated 8 times daily)	CR2450 x 4 (2480mAh) Lasts 10,000 updates (3+ years if updated 8 times daily)
Availability	Standard Product	Project-based Product

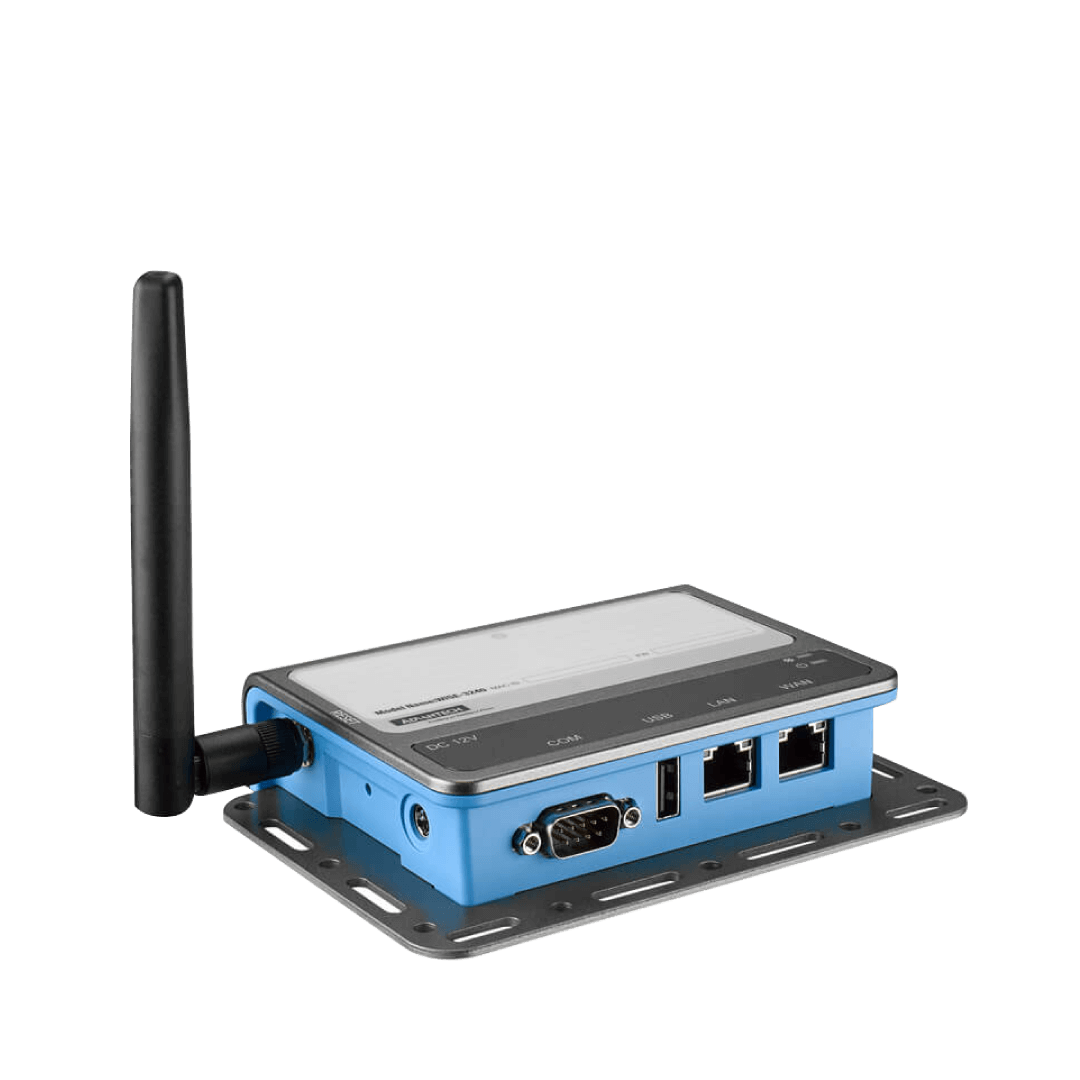

	Desk Booking Gateway	Desk Booking Router

Power	12VDC 14.04W	12VDC 3W
Connectivity	Ethernet	Wi-Fi: IEEE 802.11b/g/n 2T2R Zigbee: IEEE 802.15.4
Physical Characteristics	133.8 x 43.1 x 94.2 mm	143 x 101 x 30 mm

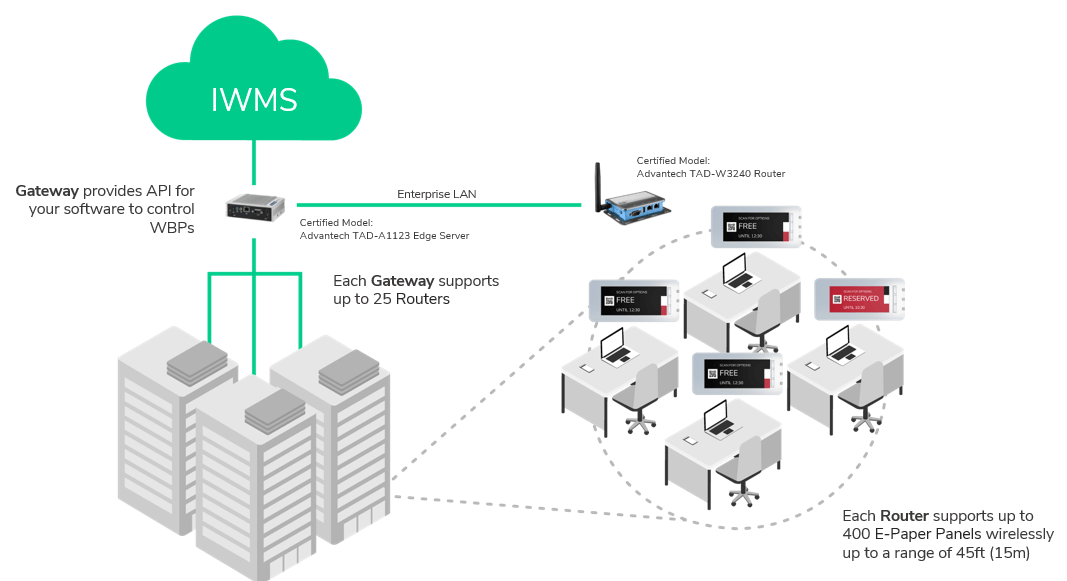

Others	Support up to 25 routers	Support up to 400 WBP-130 Coverage range: 15m with wireless signal penetrable obstacles or 25m without obstacles

IAdea is a recognized pioneer in the global digital signage market since 2000. It creates innovative, commercial-grade digital signage media players and integrated displays. By focusing on partnership, IAdea created one of the industry’s largest ecosystems around open standards across a wide variety of business markets. It aims to provide exceptional customer service through its worldwide locations.
