XMP-7300

High-Performance Kiosk Processor &

4K Media Player

IAdea XMP-7300 is the perfect processor that simplifies deploying customized and remotely manageable kiosks. Retailers and merchandisers can integrate it with smart technology like sensors, cameras, buttons, and readers to deliver a unique best user and brand experience.

Download Brochure

Technical Spec

4K technology for an unforgettable user experience.

No limitation. No compromise on performance.

Commercial-grade housing ensures device durability in tough environment

XMP-7300 is designed for continuous operation between 0 to 50 degrees Celsius

Customize your immersive experience by integrating sensors and modules

Supports touch for interactive wayfinding and self-service kiosks

Around-the-clock device monitoring maintains device stability and operation

Manage multiple H.264/H.265 AV content simultaneously with ease

High Performance Meets High Quality

The IAdea XMP-7300 has a consistently powerful quad-core graphic engine packed with the best performance, excellent energy-saving, and diligent watchdog monitoring. Whether the signage player is powering an entrance-side interactive wayfinding kiosk or gesture-sensitive retail kiosk, your content is always in the best condition, day in and out.

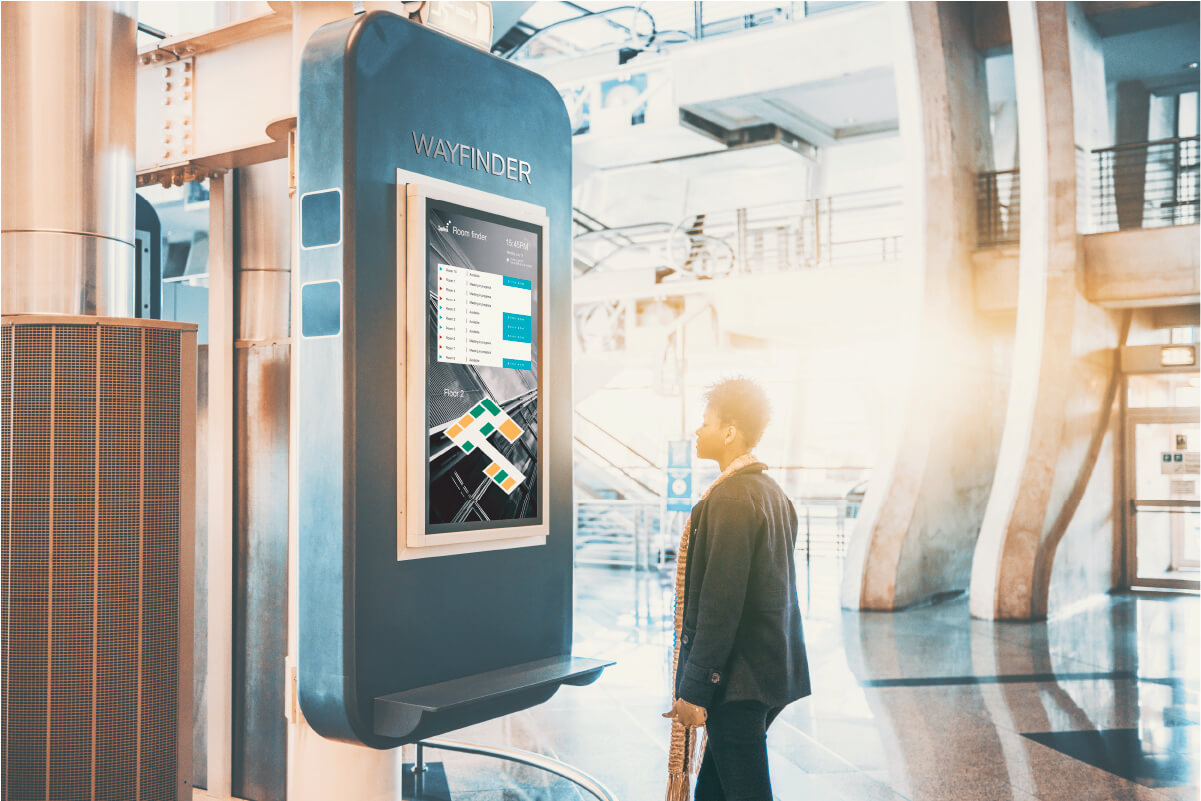

Spectacular Visual &

Interactive Experience

Unforgettable experiences bring back shoppers and fans. IAdea XMP-7300 is the perfect processor that simplifies deploying customized and remotely manageable kiosks. Retailers and merchandisers can integrate it with smart technology like sensors, cameras, buttons, and readers to deliver a unique best user and brand experience.

Request Sample

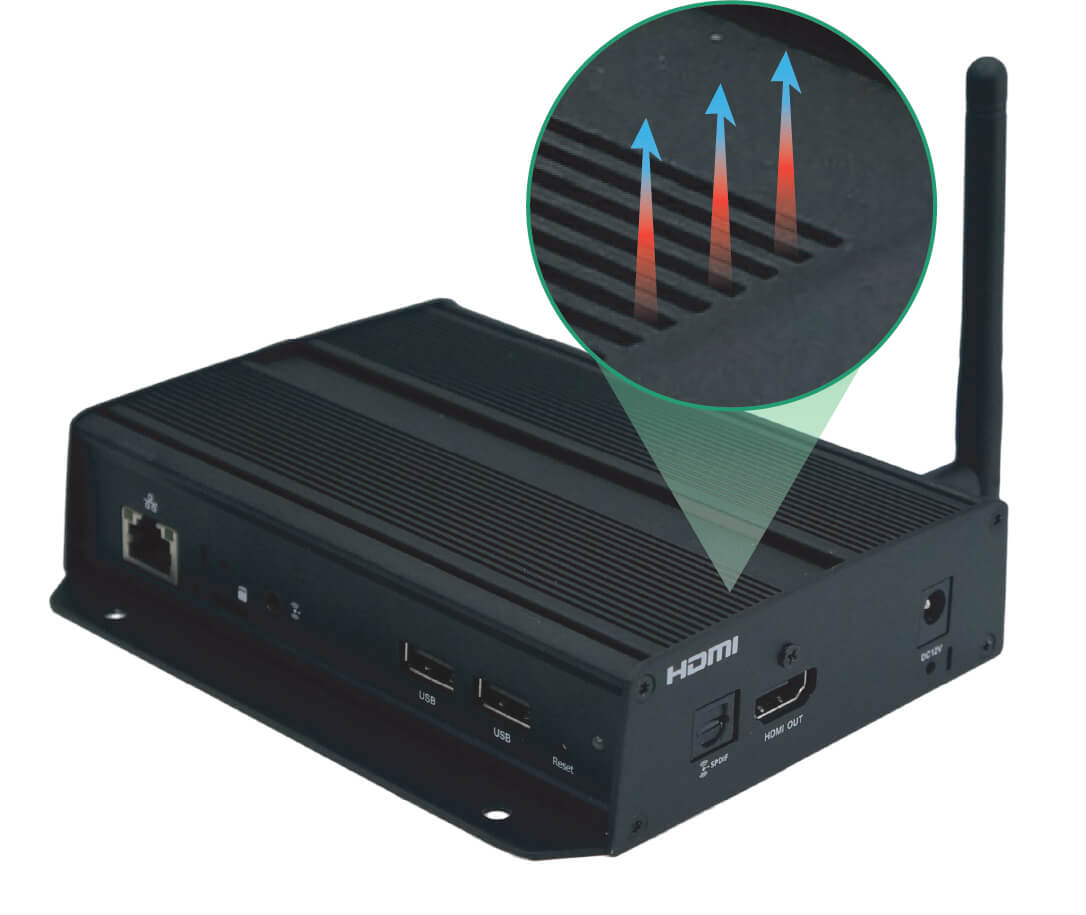

Robust Durability and Rapid Cooling

Kiosk processors that use plastic housing are vulnerable to overheating and breaking upon contact with hard surfaces. IAdea XMP-7300’s metal housing ensures rapid cooling and protection against blunt force to maintain uninterrupted operation in all kinds of demanding environments.

Easy Breezy Signage Solution

Get started with SignApps Express + XDS-2285 to quickly spin up a proof-of-concept demo and take full advantage of features available on IAdea’s hardware. The cloud option provides a simple content distribution solution to enable you to grow your deployment from 1 to 100 in record time.

Learn More

I/O Ports

Technical Specification

	XMP-7300
Video Format Supported	H.265/HEVC up to 4K (3840 x 2160) H.264/AVC up to 1080p (1920 x 1080) MPEG-4 up to 1080p (1920 x 1080) MPEG-2 up to 1080p (1920 x 1080) MPEG-1 up to 1080p (1920 x 1080) VC-1 up to 1080p (1920 x 1080)
Image Format Supported	JPEG up to 1920 x 1080 PNG up to 1920 x 1080
Audio Format Supported	MP3 up to 320 Kbps
Open Standards Supported	HTML5, JavaScript, and CSS W3C SMIL for cross-platform management W3C Widgets for HTML delivery Android 7.1 API
HTML5 Support	Widgets for calendar, clock, news, and web page integration HTML5 technologies including CSS and Javascript WebKit-based browser engine, same as Google Chrome™ and Apple Safari® browsers
Content Management	SignApps Express Utility 3rd party solution (optional license)
Advanced Signage Features	Remote commissioning AlwaysOn, AppLockto prevent unauthorized access StrongCache for continued playback even when network is not available
Connectivity	Gigabit Ethernet Wireless: 802.11 b/g/n (2.4 GHz) HDMI 2.0 (3840 x 2160 @ 60fps) Micro USB for ADB USB 2.0 x 2 3.5 mm analog stereo audio out S/PDIF out Optional 3G / 4G mobile module via USB
Local Storage	16 GB eMMC built-in Micro SD card slot (card replaces internal storage)
Expansion Option	Memory expandable to 16 GB / 32 GB with Micro SD / SDHC card
Supplied Accessories	HDMI cable External 2 dB wireless antenna Velcro Power / Micro SD card bracket
Power Requirement	Input: 100 - 240 V, 50 - 60 Hz, 0.5 A Max. Output: 12 V, 1.5 A UL/CB/PSE certified power supplies Interchangeable connector system includes US plugs (optional for EU, UK, and AUS plugs)
Environmental	Operating temperature: -20 to 50 °C Humidity: 10 to 85 % @ 45 °C, non-condensing Shock: IEC 60068-2-27 Table A.1 (railway) Vibration: 1.5 G @ 5 - 200Hz, random
Dimensions for Product & Package	System dimension: 143.60 mm x 128.13 mm x 33.65 mm (5.65” x 5.04” x1.32”) System weight: 478 g (1.05 lbs) Individual package size: 226 mm x 172 mm x 89 mm (8.89” x 6.77” x 3.5”) Total product box weight: 938.93 g (2.07 lb) Outer carton size: 482 mm x 390 mm x 245 mm (18.87” x 15.35” x 9.64”) Units per outer carton: 10 Total carton weight (10 units): 10.5 kg (23.15 lb)

Mounting Options

Have technical issues?

IAdea's no.1 support team brings efficient solutions to any issues you may have with IAdeaCare.

Contact Support

Get a warranty!

Contact our sales team to purchase a warranty for your players!

Contact Sales

IAdea is a recognized pioneer in the global digital signage market since 2000. It creates innovative, commercial-grade digital signage media players and integrated displays. By focusing on partnership, IAdea created one of the industry’s largest ecosystems around open standards across a wide variety of business markets. It aims to provide exceptional customer service through its worldwide locations.
