XDS-1078 Series

Advanced 10.1″ Interactive Room Panel

This all-in-one 10″ smart room panel is elegantly designed for the professional workplace. The built-in programmable LED side lights are perfect for immediate visible communication of room status, displaying green when the room is available and red when not, allowing viewers to view room availability from a distance.

IAdea 10″ Room Panel Series

Industry’s first Android 9.0 Meeting Room Panel

— Highly Responsive & Secure

It is packed with Android 9 OS that supports the lastest updates from Google, full touch capabilities, PoE+ (also known as 802.3at), and 1280 × 800 resolution for amazing interactive meeting room management user experience. It includes an integrated back cover flush mounting bracket – which also provides clean looking countertop display with an integrated stand and is very thin as well – measuring only 1” / 28 mm.

Secured with Google’s Android 9

Minimalist Installation

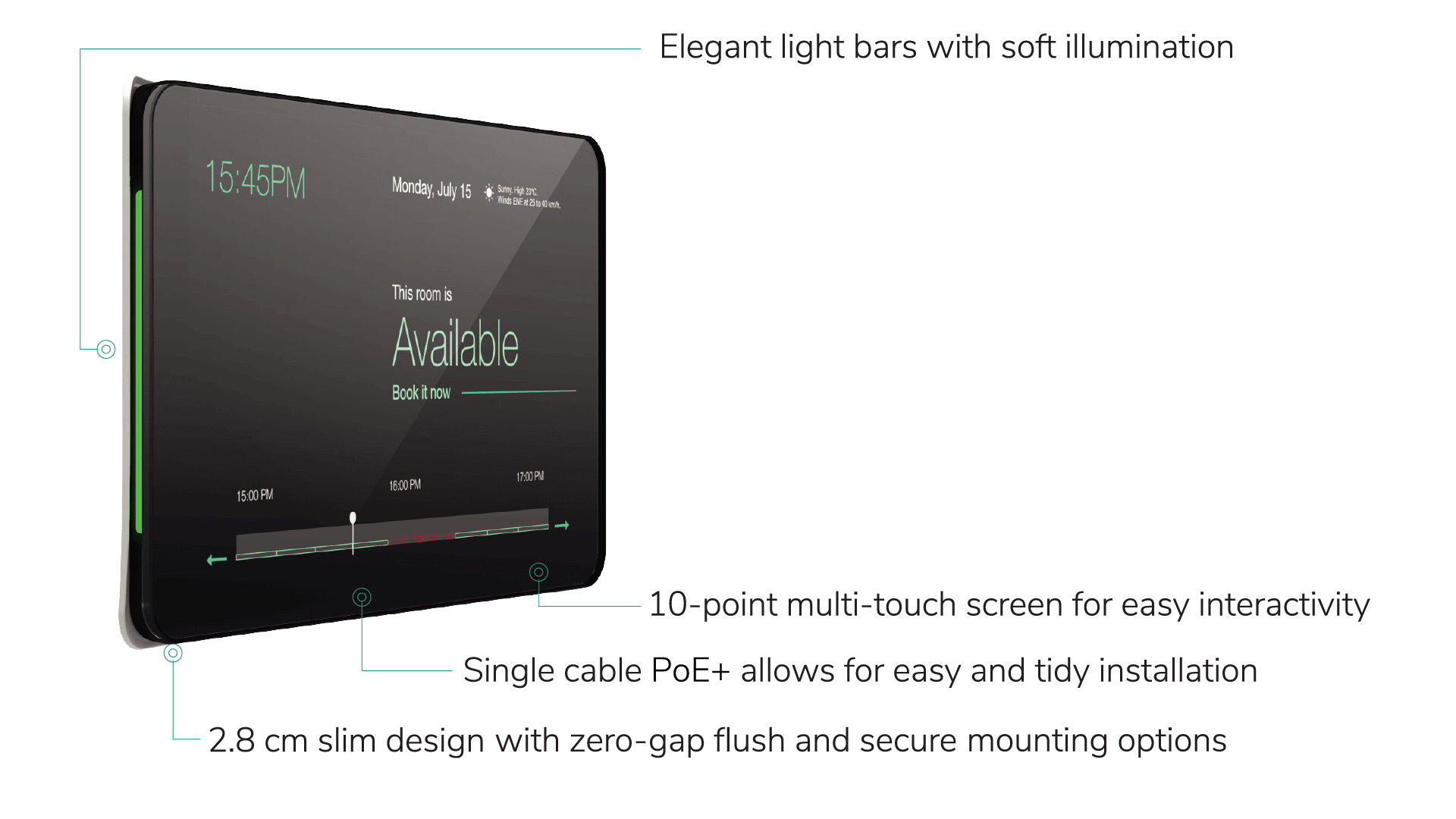

High Visibility Status Lights

Zero-Gap Versatile Mounting

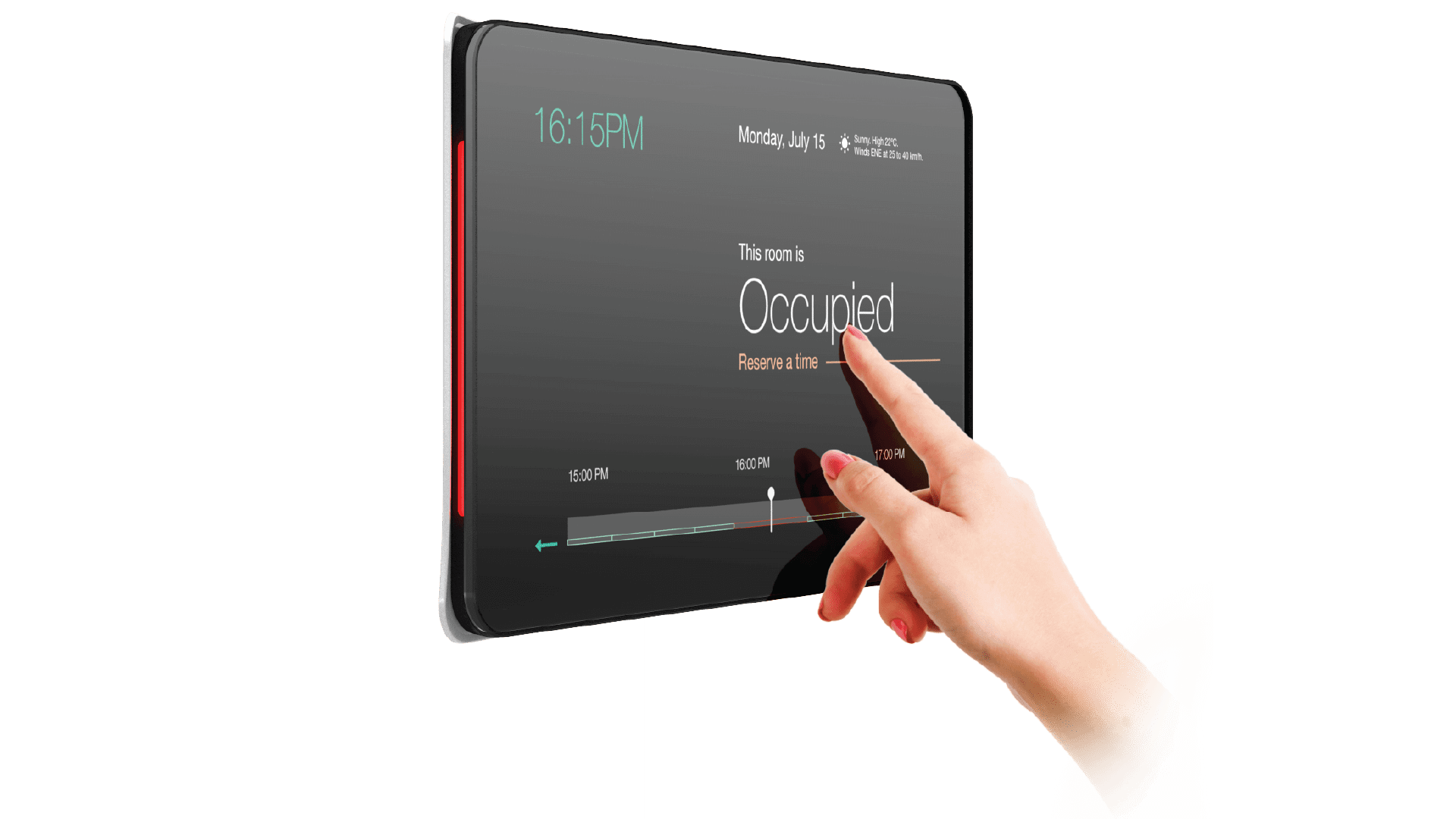

A Room Management Essential

No more time-consuming typing and submitting via website. Instead, increase operation efficiency by using touch screen to book meeting room directly in-person. Designed specifically for those fashionable glass meeting rooms, the glass mount allows for simple installation while keeping the glass as pristine as possible.

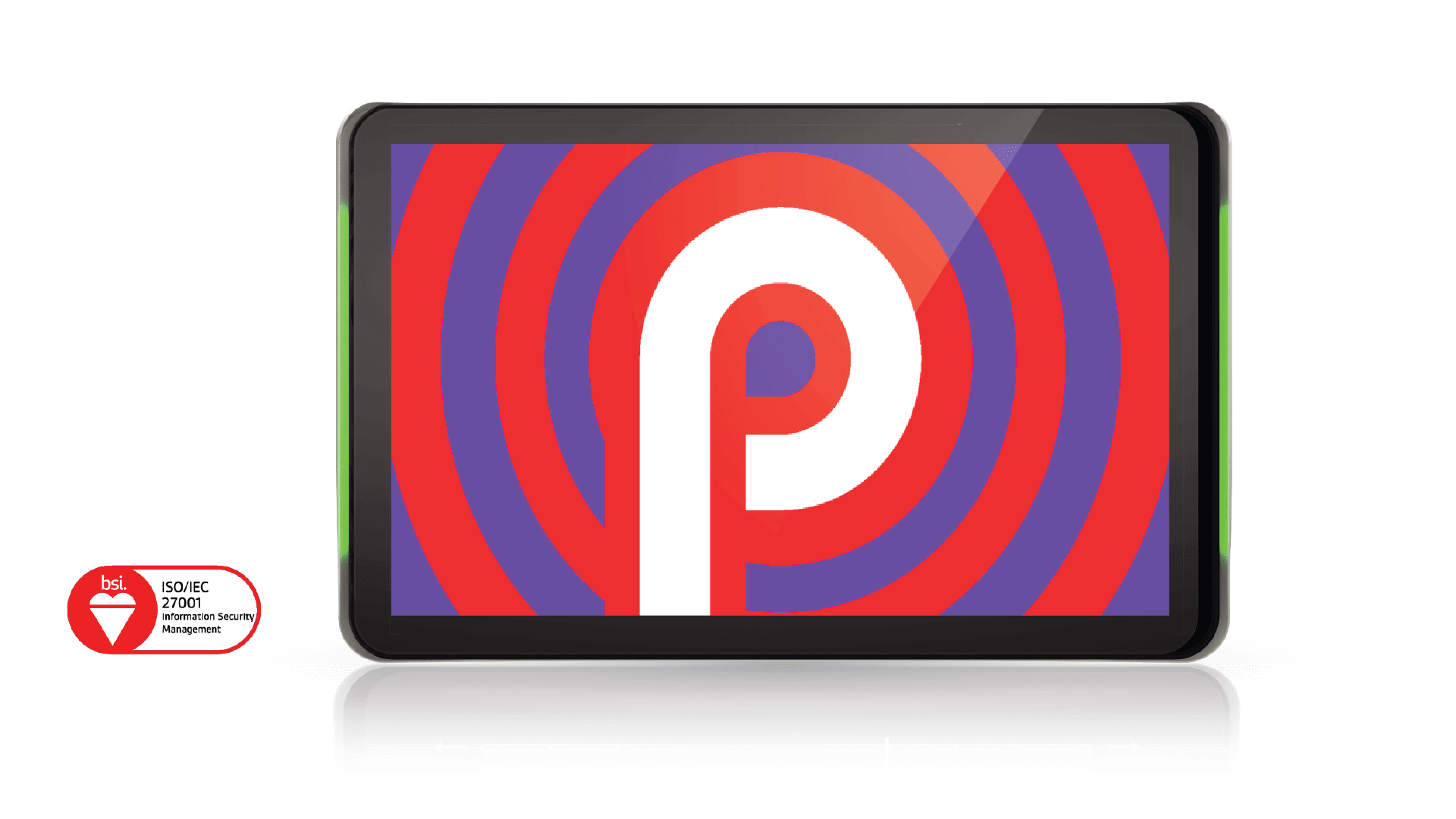

Android 9, At Your Service

The advanced Android 9 operating system supports the latest security updates from Google to ensure IAdea Advanced 10″ Room Booking Panel fulfills strict corporate IT requirements. IAdea is a ISO 27001 certified company , which means every product and service IAdea delivers meets the highest security requirements.

*Supports 802.1x authentication

Smooth As Butter Performance

What do you get when you pair the powerful ARM cortex A53 Octa-core CPU with an upgraded 2 GB of memory? Highly responsive touchscreen interaction and fast software experience.

Deploy and Manage All In-Field IAdea Devices From Cloud

IAdeaCare helps device admins avoid in-service device malfunctions, disruptions to workplace operations during office hours, and proactively perform configurations and maintenance. Click on the learn more button below!

*Teamviewer supported upon request

Certified Software

EMS
Appspace

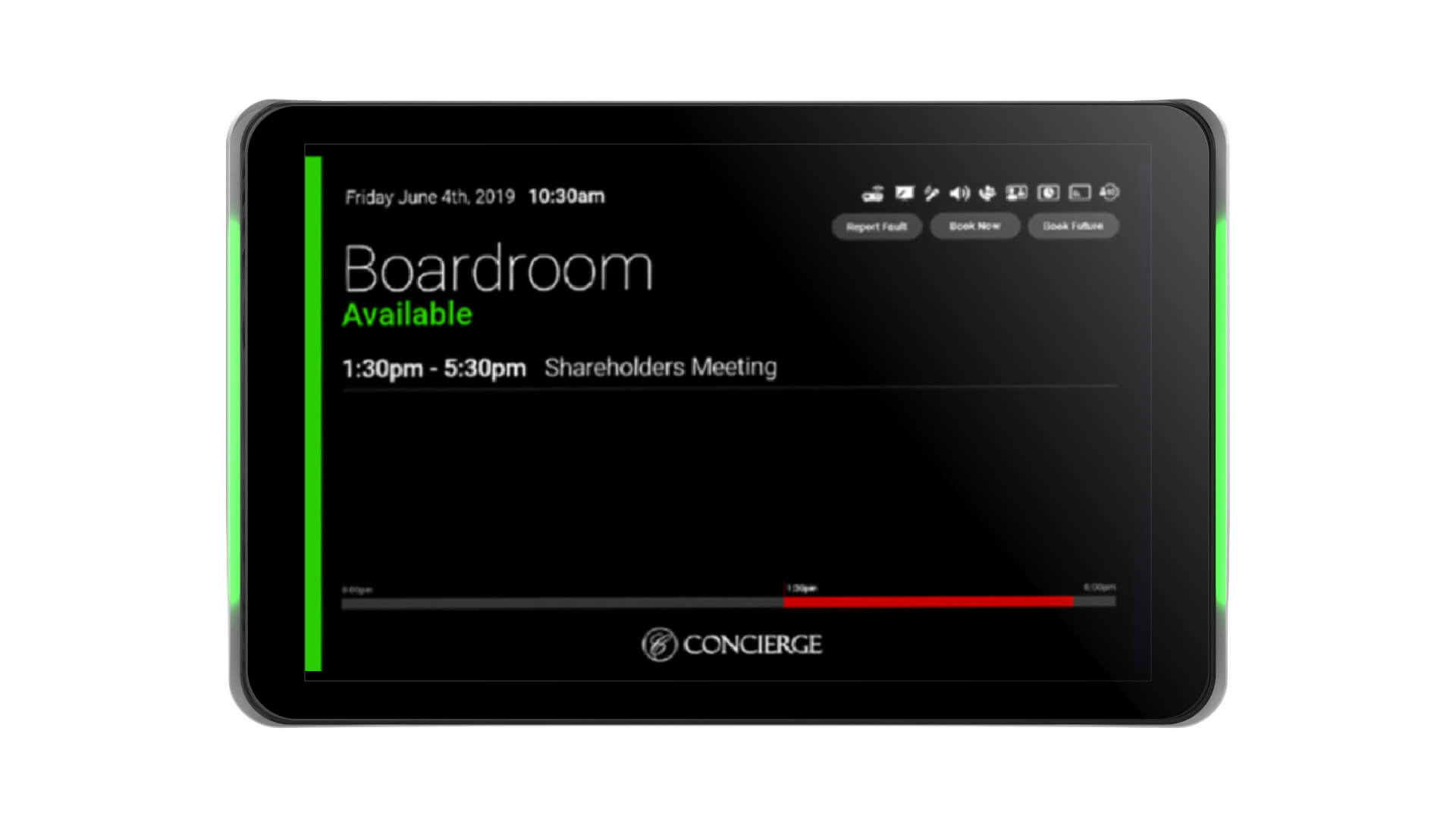

Concierge

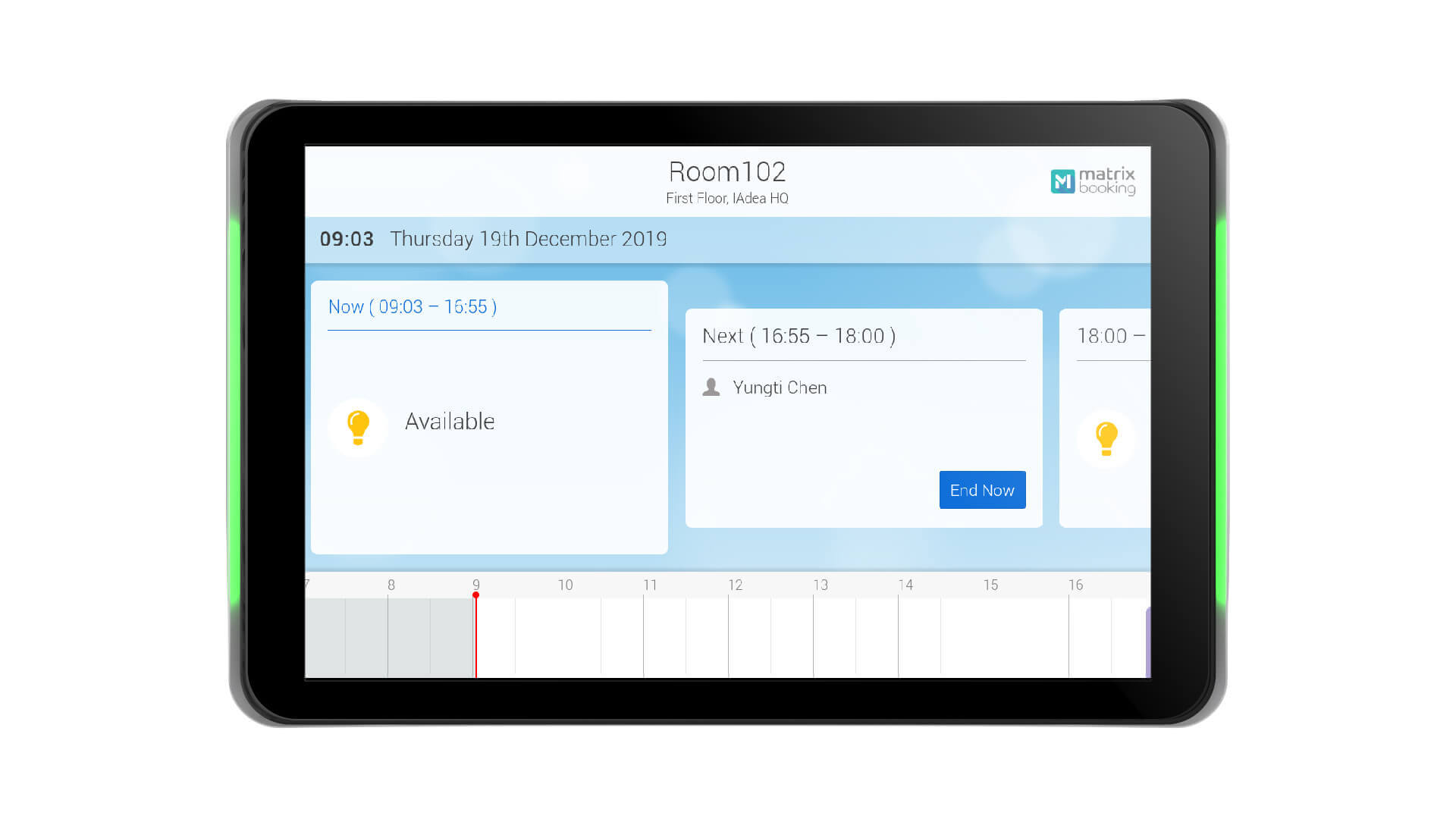

Keytree
Planon

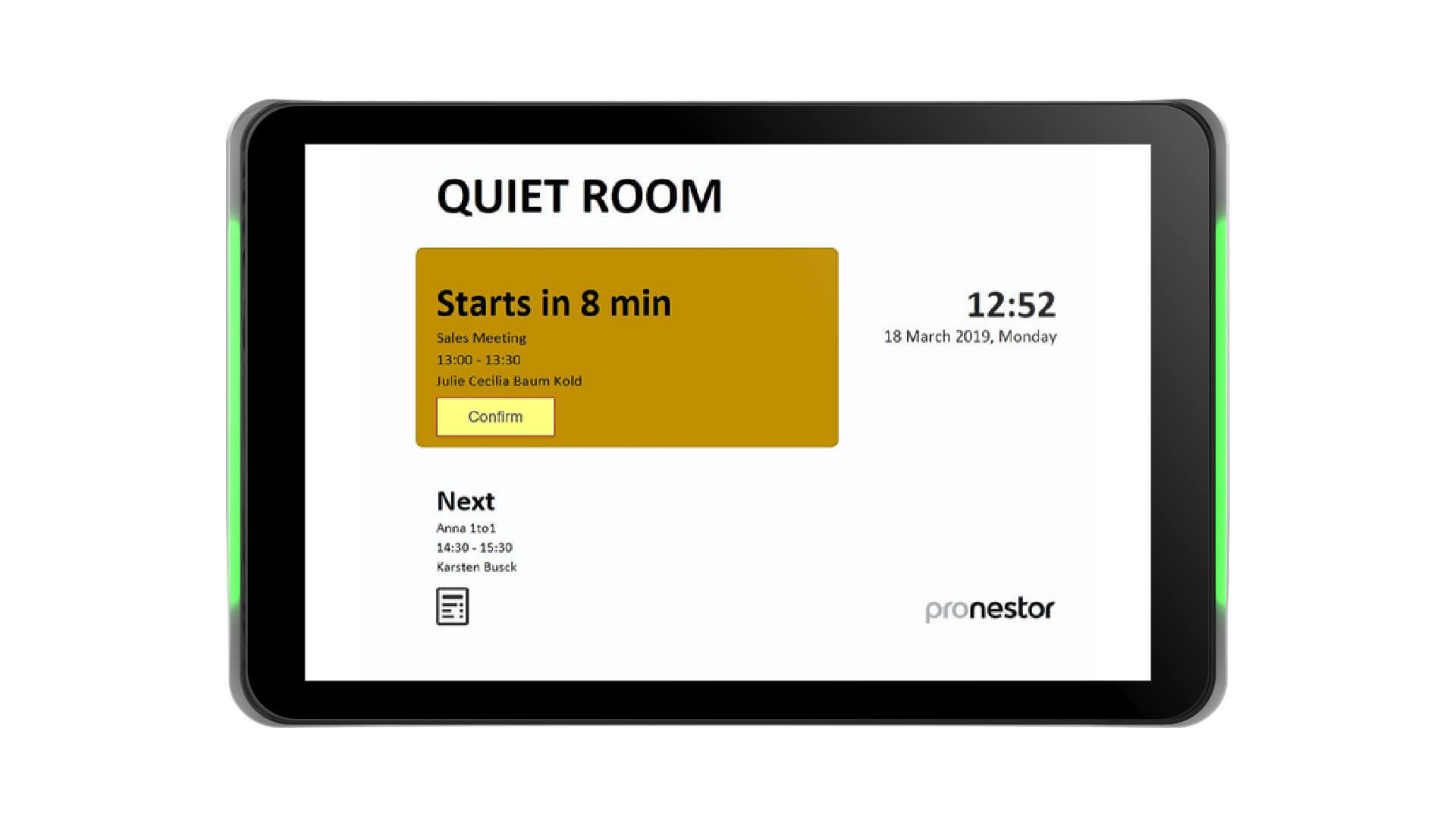

Pronestor
Space Connect

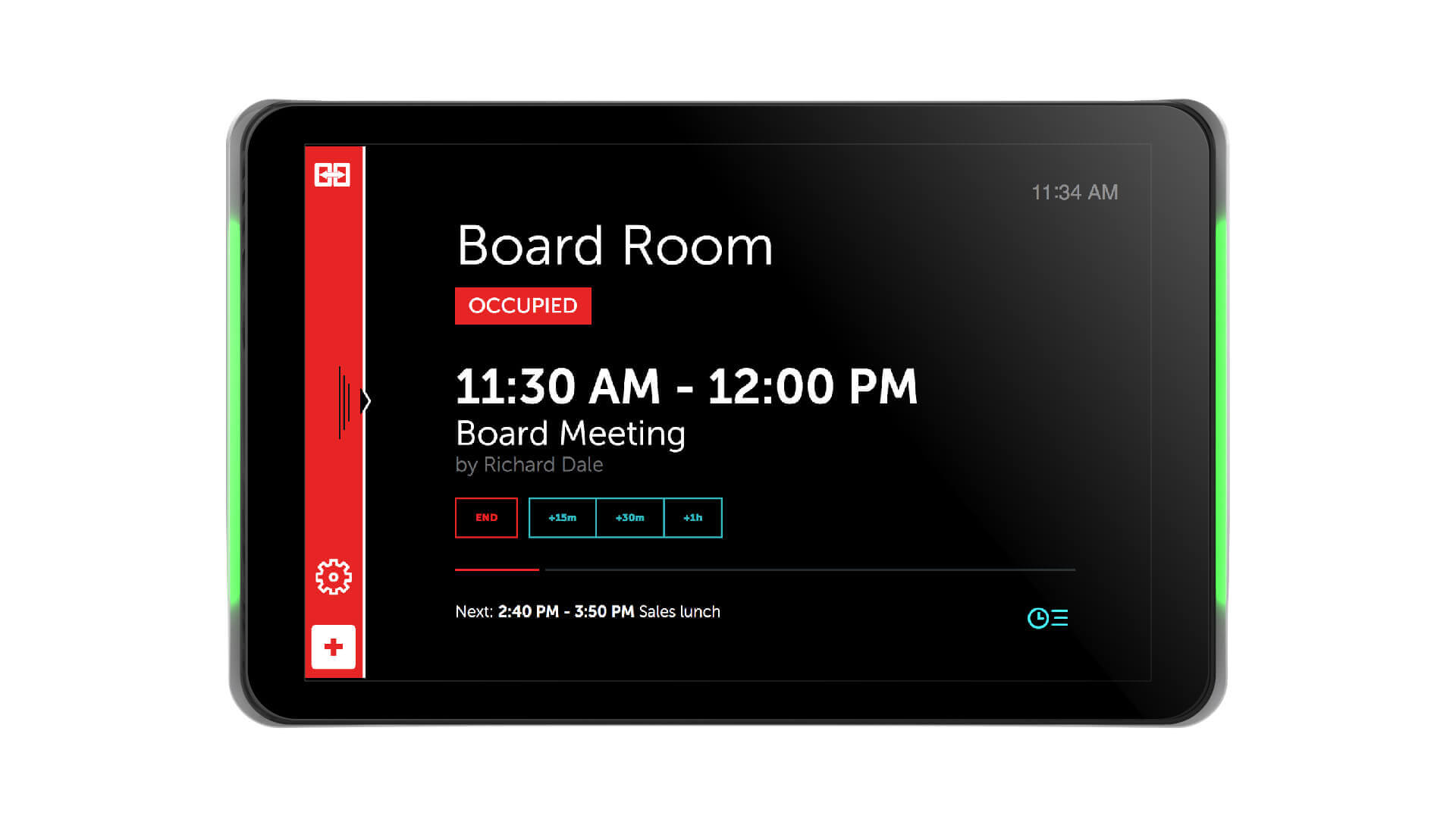

Yarooms

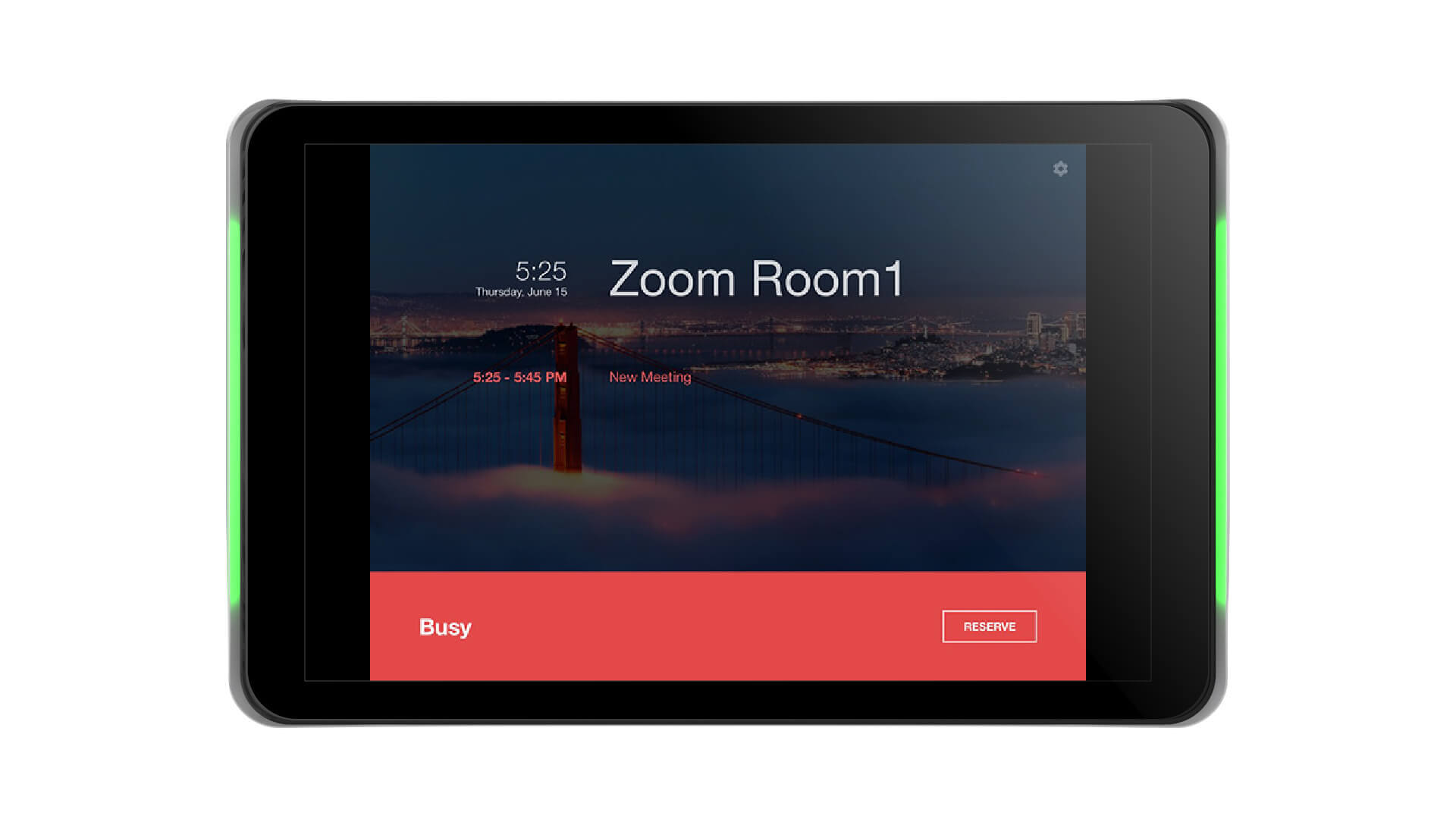

Zoom
Zoom
previous arrow
next arrow
EMS
Appspace
Concierge
Keytree
Planon
Pronestor
Space Connect
Yarooms
Zoom
Zoom
previous arrow
next arrow

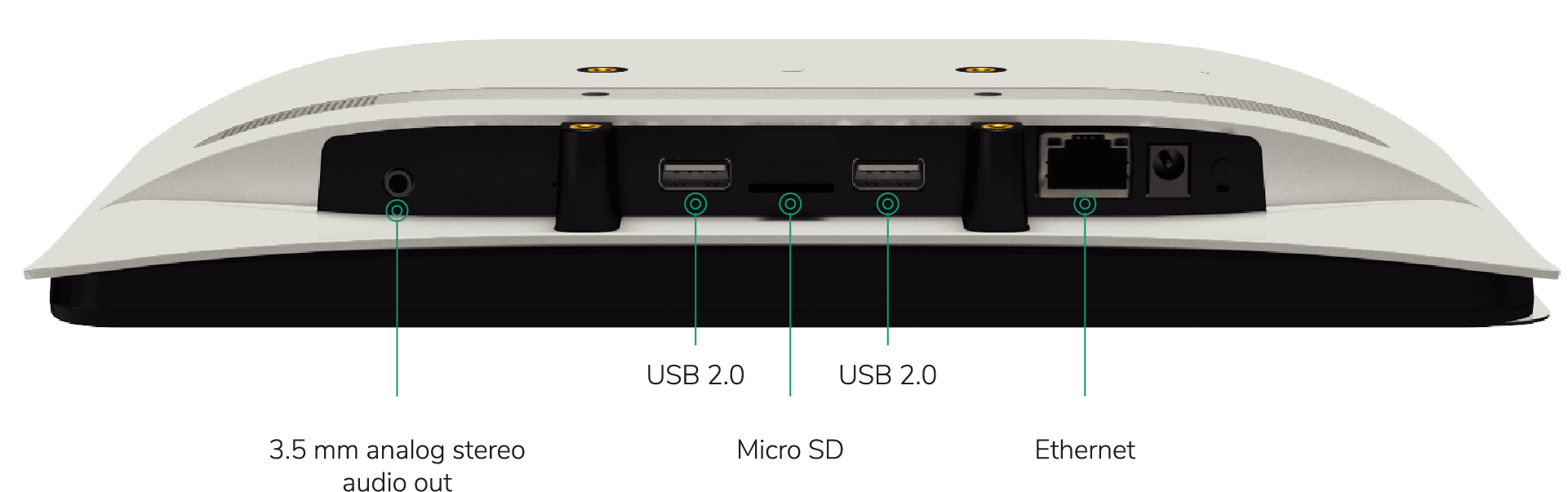

I/O Ports

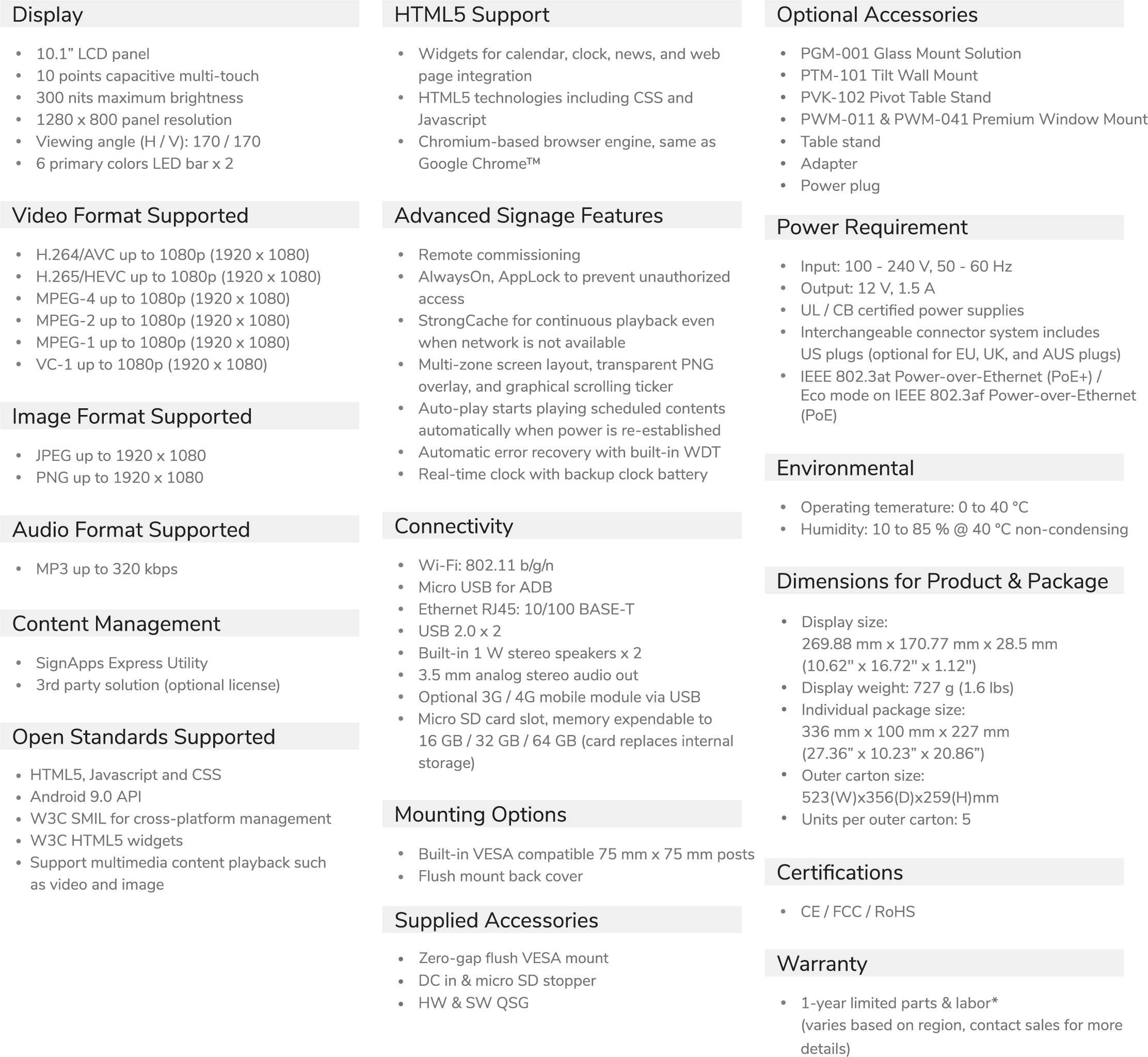

Technical Specification

Display• 10.1" LCD panel
• 10 points capacitive multi-touch
• 300 nits maximum brightness
• 1280 x 800 panel resolution
• Viewing angle (H / V): 170 / 170
• 6 primary colors LED bars x 2
Video Format Supported• H.264 / AVC up to 1080p (1920 x 1080)
• H.265 / HEVC up to 1080p (1920 x 1080)
• MPEG-4 up to 1080p (1920 x 1080)
• MPEG-2 up to 1080p (1920 x 1080)
• MPEG-1 up to 1080p (1920 x 1080)
• VC-1 up to 1080p (1920 x 1080)
Image Format Supported• JPEG up to 1920 x 1080
• PNG up to 1920 x 1080
Audio Format Supported• MP3 up to 320 kbps
Content Management• SignApps Express
• 3rd party solution (optional license)
Open Standards Supported• HTML5, Javascript and CSS
• Android 9.0 API
• W3C SMIL for cross-platform management
• W3C HTML5 widgets
• Support multimedia content playback such as video and image
HTML Supported• Widgets for calendar, clock, news, and web page integration
• HTML5 technology including CSS and Javascript
• Chromium-based browser engine, same as Google Chrome™
Advanced Signage Features• Remote commissioning
• AlwaysOn, AppLock to prevent unauthorized access
• StrongCache for continuous playback even when network is not available
• Multi-zone screen layout, transparent PNG overlay, and graphical scrolling ticker
• Auto-play starts playing scheduled content automatically when power is not re-established
• Automatic error recovery with built-in WDT
• Real-time clock with backup clock battery
Connectivity• W-Fi: 802.11 b/g/n
• Micro USB for ADB
• Ethernet RJ45: 10/100 BASE-T
• USB 2.0 x 2
• Built-in 1 W stereo speakers x 2
• 3.5 mm analog stereo audio out
• Optional 3G / 4G mobile module via USB
• Mirco SD card slot, memory expendable to 16 GB / 32 GB / 64 GB (card replaces internal storage)
Mounting Options• Built-in VESA compatible 75 mm x 75 mm posts
• Flush mount back cover
Supplied Accessories• Zero-gap flush VESA mount
• DC in & micro SD stopper
• Hardware & software quick start guide
Optional Accessories• PGM-001 Glass Mount Solution
• PTM-101 Tilt Wall Mount
• PVK-102 Pivot Table Stand
• PWM-011 & PWM-041 Premium Window Mount
• Table stand
• Adapter
• Power plug
Power Requirement• Input: 100 - 240 V, 50 - 60 Hz
• Output: 12 V, 1.5 A
• UL / CB certified power supplies
• Interchangeable connector system includes US plugs (optional for EU, UK, and AUS plugs)
• IEEE 802.3at Power-Over-Ethernet (PoE+) / Eco Mode on IEEE 802.3af power-over-Ethernet
Environmental• Operating temperature: 0 °C to 40 °C
• Humidity: 10 % to 85 % @ 40 °C non-condensing
Dimensions for Product & Package• Display size (mm): 269.88 x 170.77 x 28.5 (10.62" x 6.72" x 1.12")
• Display weight (g): 727 (1.6 lbs)
• Individual package size (mm): 336 x 100 x 227 (27.36" x 10.23" x 20.86")
• Outer carton size (W x D x H; mm): 522 x 356 x 259
• Units per outer carton: 5
Certifications• CE / FCC / RoHS
Warranty• 1-year limited parts & labor* (varies based on region, contact sales for more details)

Series Comparison

 Android versionTouchLightRAMStorage PoE
XDS-1078-A99.02 GB16 GB
(PoE+)
XDS-1078-A77.11 GB8 GBPoE

Mounting Options

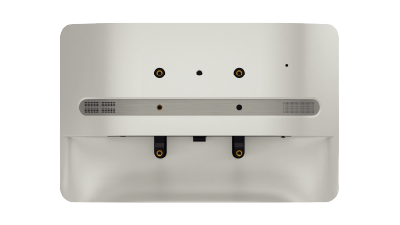

Zero-gap flush VESA mount

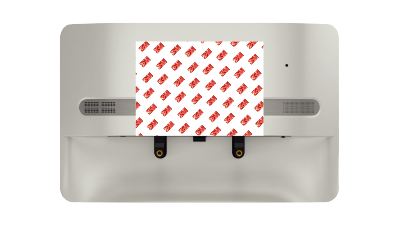

Window Mount Solution PGM-001

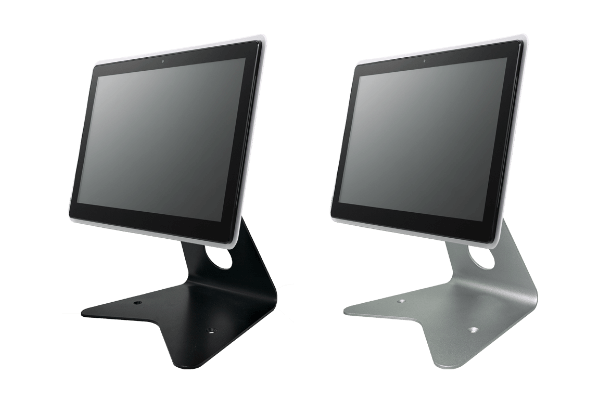

Pivot Table Stand PVK-102

Wide Window Mount PWM-041

Narrow Window Mount PWM-011

Tilt Wall Mount PTM-101
