XDS-2288

22″ Interactive Smart Kiosk

The IAdea XDS-2288 is a 22” smart signboard as part of IAdea Smart Workplace series which incorporates a robust design and commercial functionality into a value-pack interactive digital signage solution.

IAdea 22″ Smart Kiosk

A powerful touch display to drive office productivity and efficiency

Touch-enabled digital door sign? Check. All-in-one smart design to eliminate tedious wiring and allow remote content and display management? Check. Compatible with various 3rd-party software to implement booking systems which satisfies the needs of any workplace? Check.

Interactive

Wide View Angle

Tempered Glass

Powerful CPU

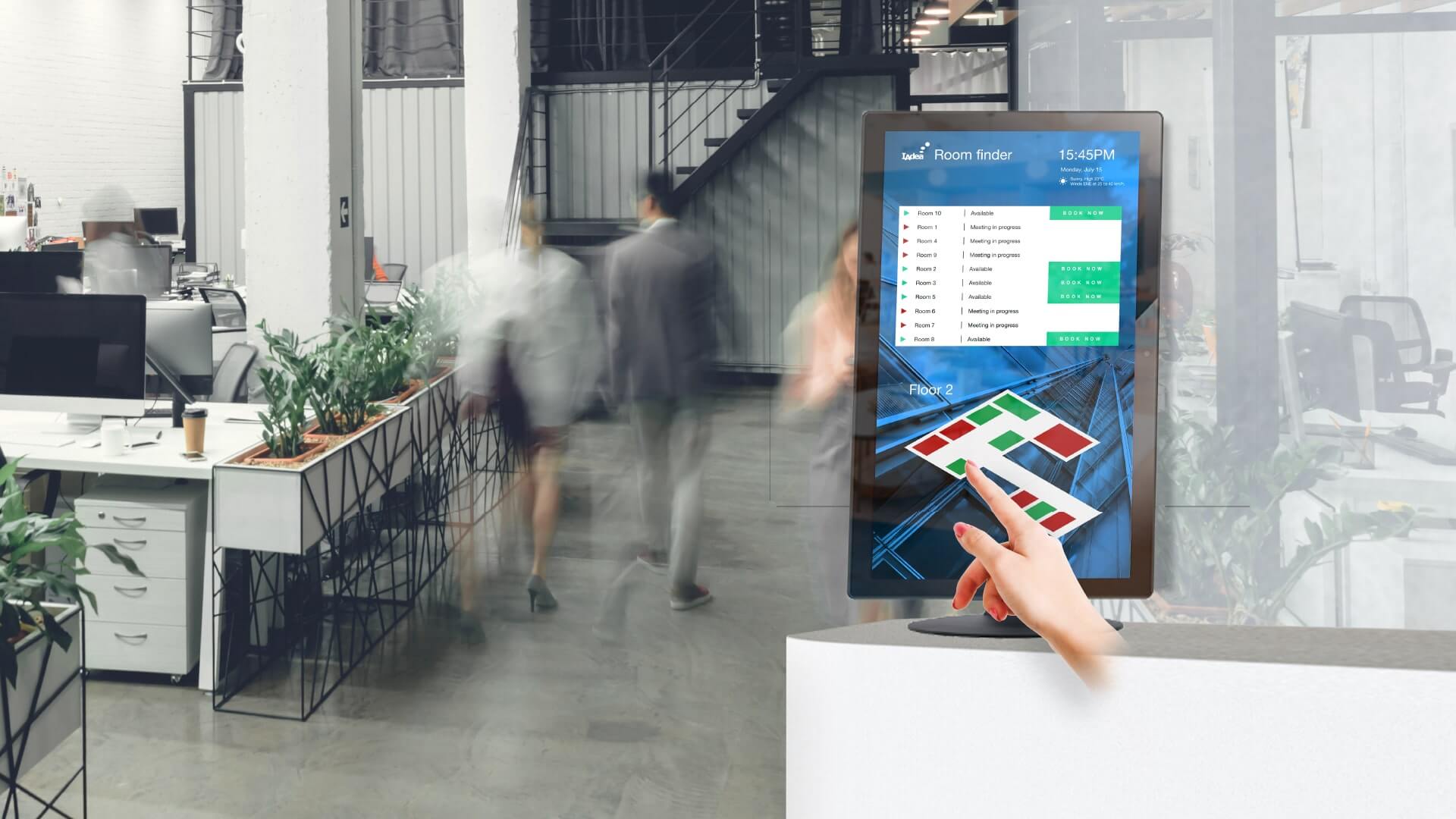

Superior Interactive Experience

A Quad-core processor to ensure the smoothest interactive experience. Browse through available meeting space and book the space with a few taps. Eliminate the time-consuming typing and submission via website by using instant on-site booking which gives you the convenience of browsing schedules and completing bookings in-person, right at the panel.

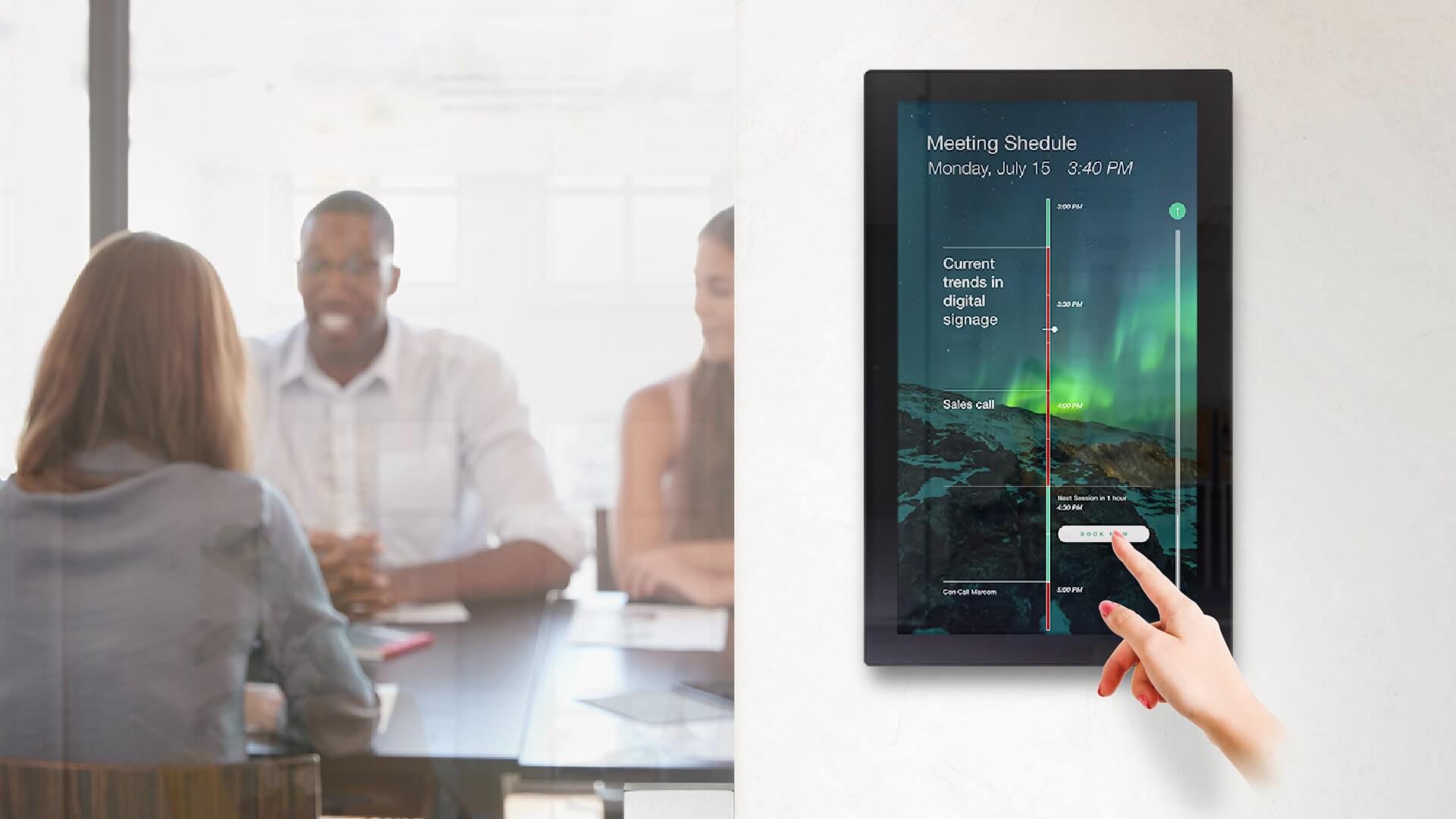

All-in-One Smart Design

A digital signage as versatile as the content it plays. Rotate the signage between portrait and landscape positioning to maximize the presentation of your media contents. You don’t even need to go into settings – just turn it! Built-in VESA MIS-D mounting makes the installation dummy-proof and easy breezy.

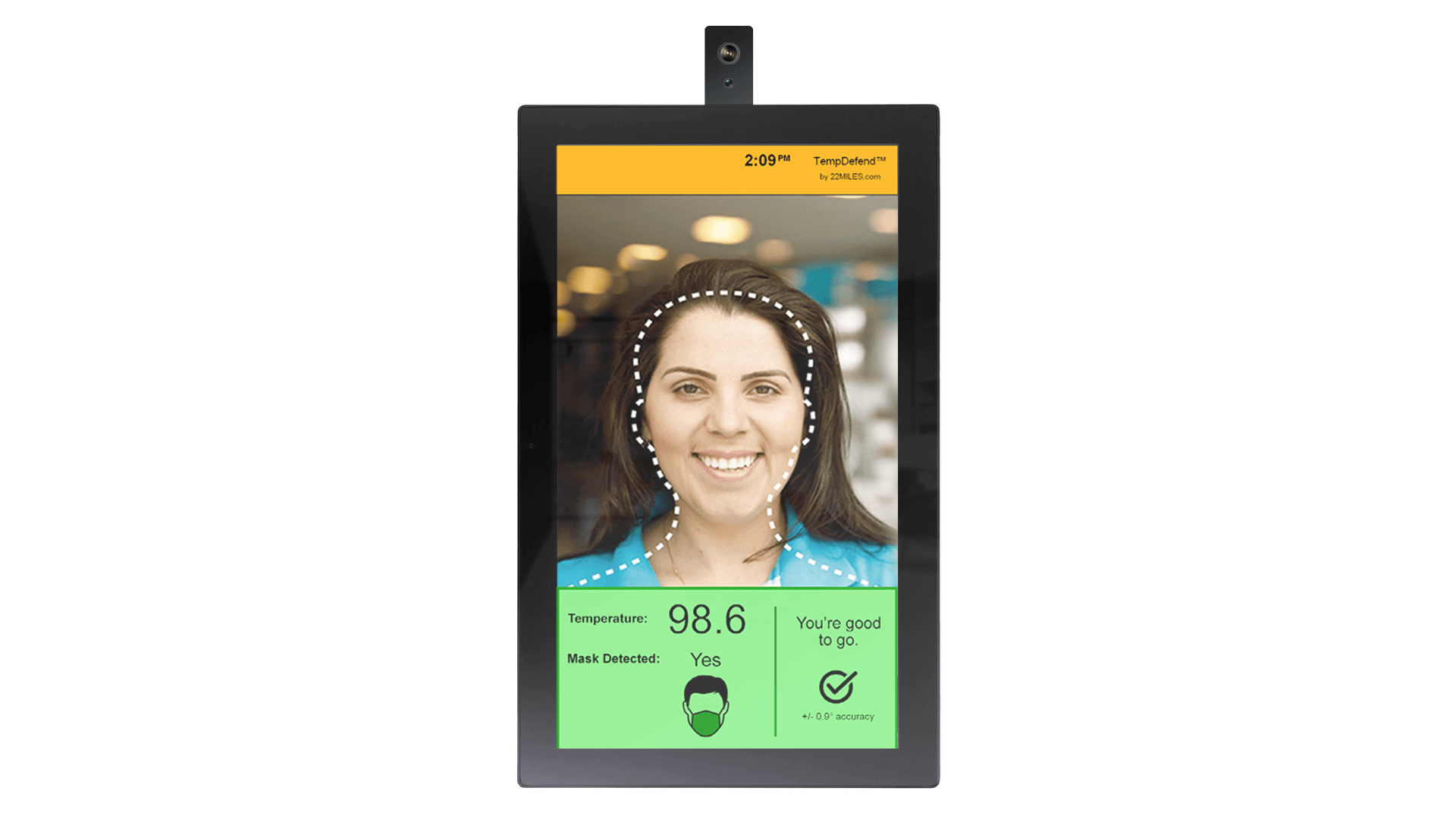

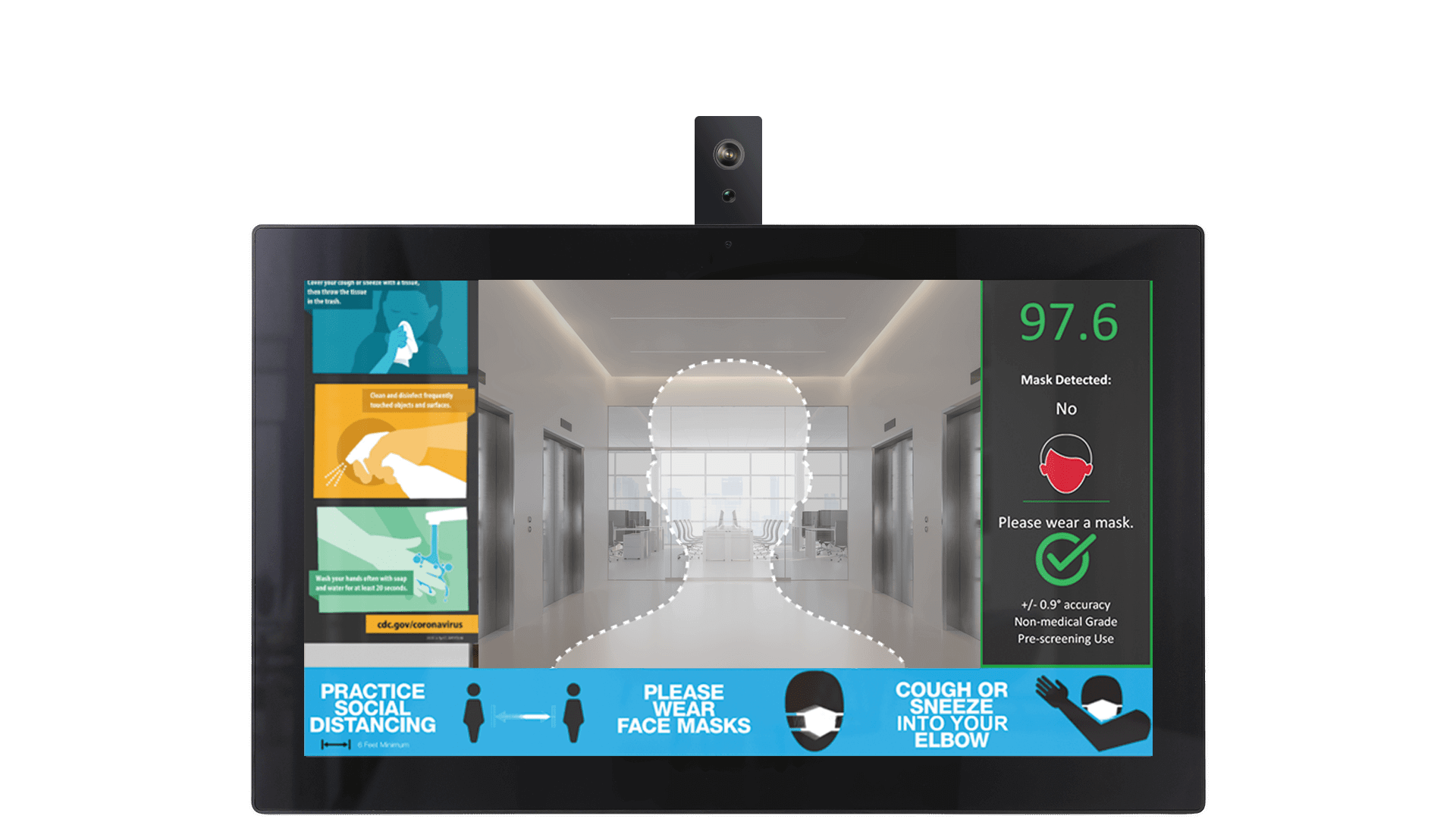

TempDefend™ Self-Service Body Temperature Detection Station

TempDefend™ kiosks can be placed at the entrances of offices and workspaces as preliminary screening to alert management of individuals with elevated temperatures and also as a reminder for people to use masks before entering the facility. These pre-entry actions help keep everyone safe and healthy.

Easy Breezy Signage Solution

Get started with SignApps Express + XDS-2288 to quickly spin up a proof-of-concept demo and take full advantage of features available on IAdea’s hardware. The cloud option provides a simple content distribution solution to enable you to grow your deployment from 1 to 100 in record time.

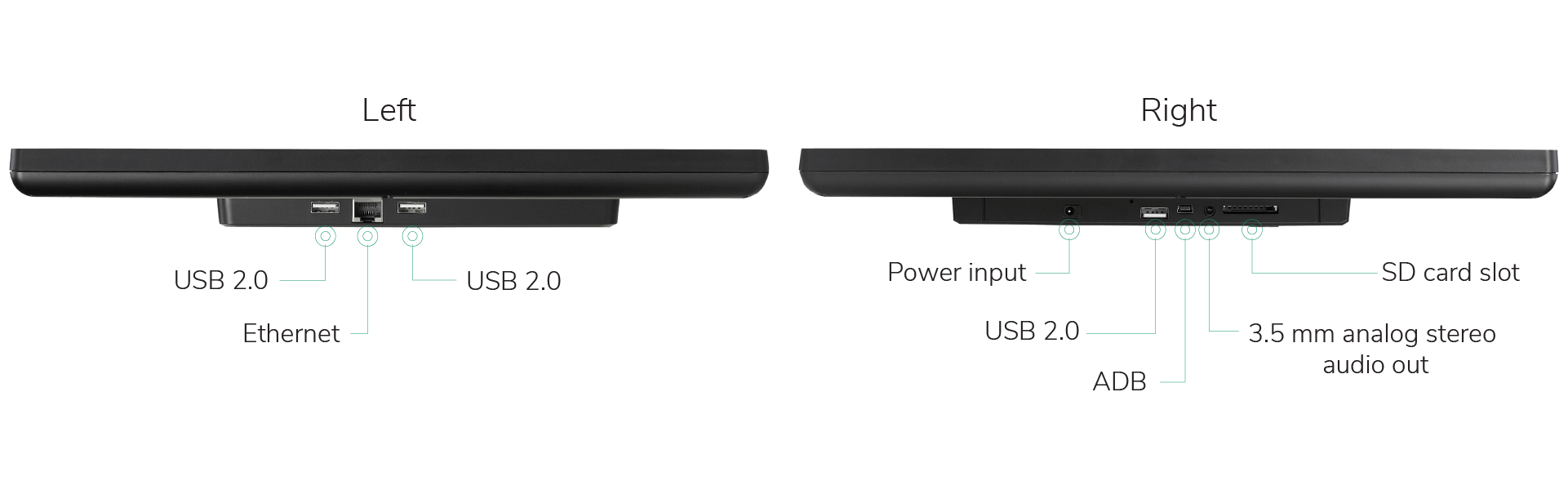

I/O Ports

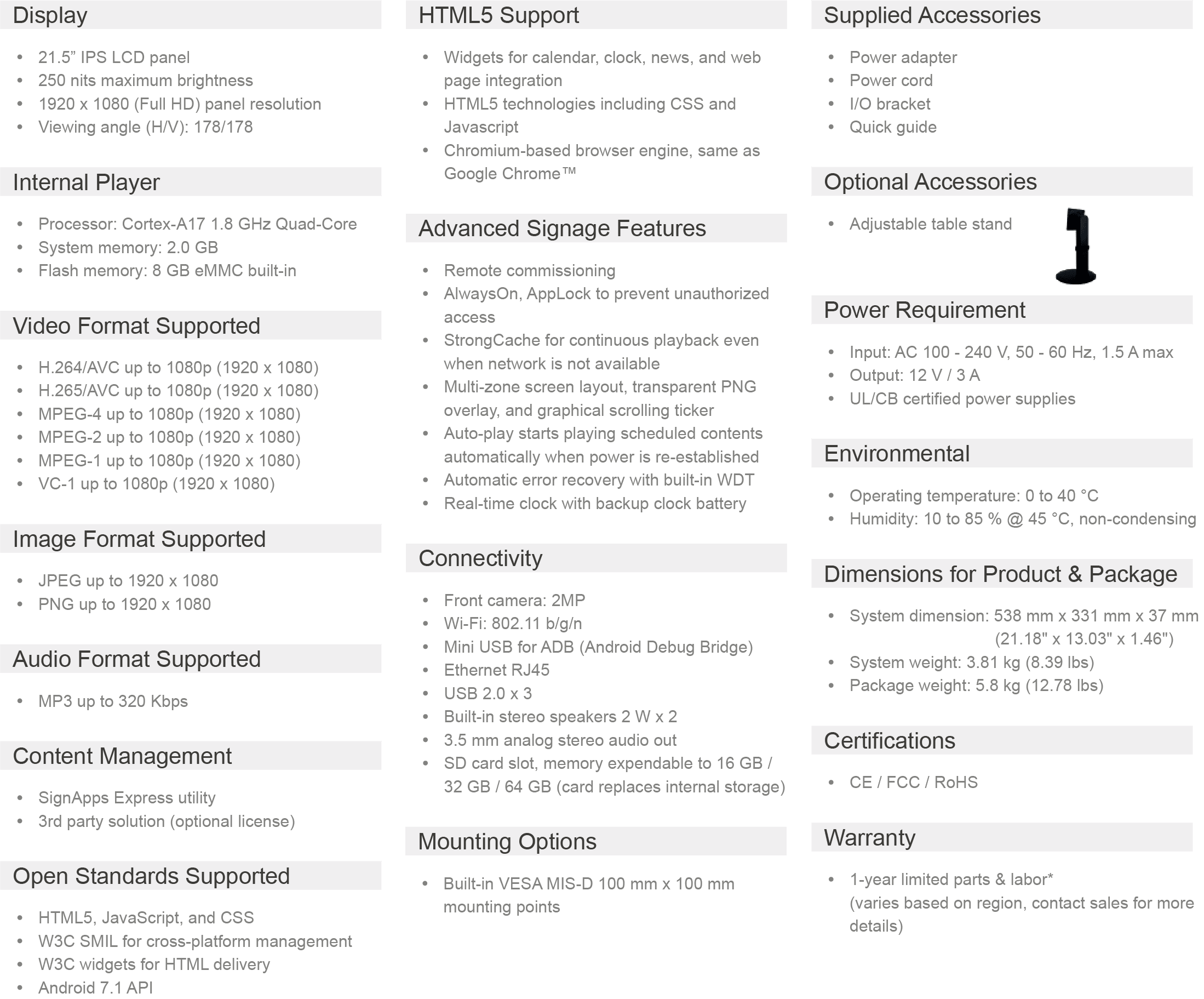

Technical Specification

Display• 21.5” IPS LCD panel
• 10 points capacitive multi-touch
• 250 nits maximum brightness
• 1920 x 1080 (Full HD) panel resolution
• Viewing angle (H/V): 178/178
Internal Player• Processor: Cortex-A17 1.8 GHz Quad-Core
• System memory: 2.0 GB
• Flash memory: 8 GB eMMC built-in
Video Format Supported• H.264 / AVC up to 1080p (1920 x 1080)
• H.265 / AVC up to 1080p (1920 x 1080)
• MPEG-4 up to 1080p (1920 x 1080)
• MPEG-2 up to 1080p (1920 x 1080)
• MPEG-1 up to 1080p (1920 x 1080)
• VC-1 up to 1080p (1920 x 1080)
Image Format Supported• JPEG up to 1920 x 1080
• PNG up to 1920 x 1080
Audio Format Supported• MP3 up to 320 kbps
Content Management• SignApps Express
• 3rd party solution (optional license)
Open Standards Supported • HTML5, JavaScript, and CSS
• W3C SMIL for cross-platform management
• W3C widgets for HTML delivery
• Android 7.1 API
HTML5 Support• Widgets for calendar, clock, news, and web page integration
• HTML5 technology including CSS and Javascript
• Chromium-based browser engine, same as Google Chrome™
Advanced Signage Features• Remote commissioning
• AlwaysOn, AppLock to prevent unauthorized access
• StrongCache for continuous playback even when network is not available
• Multi-zone screen layout, transparent PNG overlay, and graphical scrolling ticker
• Auto-play starts playing scheduled content automatically when power is not re-established
• Automatic error recovery with built-in WDT
• Real-time clock with backup clock battery
Connectivity• Front camera: 2MP
• Wi-Fi: 802.11 b/g/n
• Mini USB for ADB (Android Debug Bridge)
• Ethernet RJ45
• USB 2.0 x 3
• Built-in stereo speakers 2 W x 2
• 3.5 mm analog stereo audio out
• SD card slot, memory expendable to 16 GB / 32 GB / 64 GB (card replaces internal storage)
Mounting Options• Built-in VESA compatible 100 mm x 100 mm posts
Supplied Accessories• Power adapter
• Power cord
• I/O bracket
• Quick guide
Optional Accessories• PVK-302 Adjustable Table Stand
Power Requirement• Input: AC 100 - 240 V, 50 - 60 Hz, 1.5 A max
• Output: 12 V / 3 A
• UL/CB certified power supplies
Environmental• Operating temperature: 0 °C to 40 °C
• Humidity: 10 % to 85 % @ 40 °C non-condensing
Dimensions for Product & Package• System dimension (mm): 538 x 331 x 37 (21.18" x 13.03" x 1.46")
• System weight: 3.83 kg (8.44 lbs)
• Package weight: 5.8 kg (12.78 lbs)
Certifications• CE / FCC / RoHS
Warranty• 1-year limited parts & labor* (varies based on region, contact sales for more details)

Mounting Options

Adjustable Table Stand PVK-302

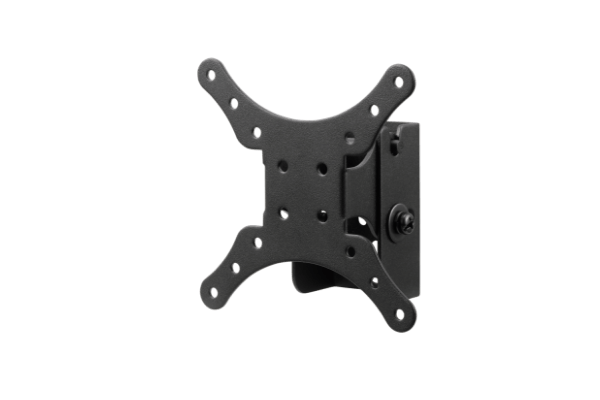

Tilt Wall Mount PTM-101
